Add encoded letterbox crop for desktop and Android

[selmant]

Summary

Adds a Crop black bars playback toggle that detects encoded letterbox/pillarbox and crops it, then fills the screen. This is a separate setting from zoom Auto Crop on purpose.

#1523 is why: Auto Crop is cover-zoom (BoxFit.cover / aspect-fill). It scales the whole coded frame to fill the window and clips overflow. It does not find or remove black bars baked into a 16:9 file. Putting real bar-detection into that zoom control would make the existing confusion worse, so this ships as its own toggle next to zoom until that naming is sorted. If #1523 lands (rename Auto Crop so zoom is clearly fill/cover, not a crop), this can move into zoom settings.

Related Issues

• Related to [Feature] Rename Auto Crop zoom mode — it is cover-zoom, not a crop #1523

Type of Change

• New feature

Changes Made

• Desktop libmpv: cropdetect then vf crop
• Android Media3 (phone and TV): PixelCopy (TextureView getBitmap fallback), then layout zoom into the crop rect (SurfaceView + tunneling cannot use Media3 Crop effects)
• Shared LetterboxCropper in playback_core; Aether / HTML / tvOS are explicit stubs
• Setting is hidden where no cropper runs

Platform

• Android
• Android TV
• Windows
• Linux
• iOS
• tvOS
• Web
• macOS

No devices on hand for iOS / macOS / tvOS / web. The cropper interface is there so those platforms can follow this path.

Testing

• Tested on emulator / simulator
• Tested on physical device
• Manual testing completed

Test Steps

1. Settings → Playback & SyncPlay → Video Playback Preferences → enable Crop black bars (off by default)
2. Play a title with encoded letterbox (not just window pillarboxing)
3. After a few seconds the bars should crop and the picture should fill
4. Confirm zoom Auto Crop is still cover-zoom and is not this detect

Tested on Linux (libmpv) and Android TV emulator (Media3). Phone uses the same Media3 path; iOS/macOS/tvOS/web untested.

Checklist

• Code follows project style and conventions
• No unnecessary commented-out code

Made with Cursor

[mattsigal]

Hope you don't mind me popping in to ask a few questions @selmant -- I just don't have a file at the ready to test this with and was curious.

1. If I understand this right, using the new toggles means it'll apply the crop just to the bars then do the requested zoom mode? So having this on + zoom mode set to Fit would mean it'll always show the entire image, yeah? And only make a difference if the source file has the black bars included.
2. Does this have any impact on direct playing? If the toggle kicks in, would that force a transcode?
3. There are some movies (e.g. films with some scenes that use IMAX dimensions) that switch between letterboxed and full-screen images. How would the toggle handle those cases?

[selmant]

1. Not exactly. This is basically separate from the zoom mode. The zoom modes are mainly about how the video frame is fitted/stretched to the screen, while this specifically detects black bars that are actually encoded into the video and removes them. This is especially useful on ultrawide monitors. I have a 21:9 monitor myself. A lot of 18:9 / 21:9 movies are still encoded inside a 16:9 frame with black bars, so just using the existing zoom modes doesn't really solve the problem properly. Originally I actually disabled the normal zoom mode while this was enabled because once the bars are removed I didn't really need it anymore, but @RadicalMuffinMan changed that so the two can now be used independently. Maybe he has a different plan for how they should interact.

2. No, this doesn't modify the file on the server or force a transcode. Everything happens locally in the client. On desktop it's basically cropdetect + vf crop. The only slightly special part is hardware decoding. cropdetect needs access to the decoded frames, so if the current hwdec mode doesn't allow that, Moonfin temporarily switches to a compatible decoding mode while detecting the bars and restores it afterwards. So Direct Play itself is still Direct Play.

3. Right now I implemented it as a one-time detection near the beginning of playback, so movies that switch between letterboxed and IMAX/full-frame scenes won't update the crop dynamically. Maybe we can make it re-scan every 20 seconds or something like that. I think it's worth testing to see if that works well without causing visible jumps or too much overhead.

[JayBrown]

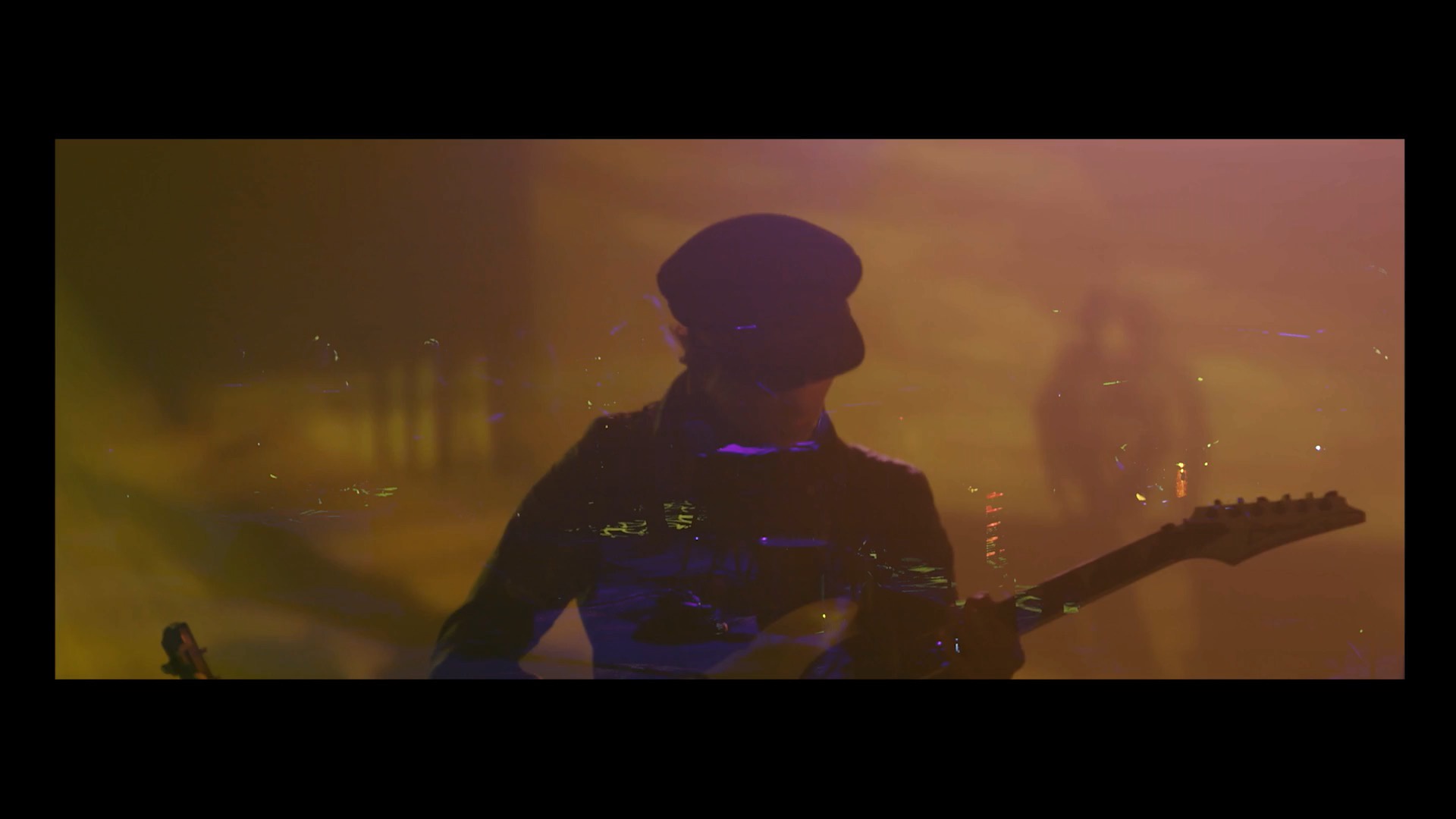

Question, though not for me, because I'm on macOS/iOS/tvOS: does this also cover vertical black bars? Example – a screengrab from a movie's internal production copy (16:9 video) with black bars all around:

Does this also detect and crop the vertical bars left & right? (For me on macOS, I'll have to reencode the file with ffmpeg incl. cropping anyway, but maybe it works on Linux/Windows.)

[selmant]

@JayBrown Good question. It didn't cover that before: bars on all four sides were ignored. I've added support for it in the new PR, #1579 (#1579), so a picture with black bars all around (like your screengrab) now gets cropped on Android, Linux and Windows.

Unfortunately I don't have an Apple device, so there's no macOS/iOS/tvOS support for now.
