hbmcp - Harbour MCP Server

   _     _     __  __  ____  ____
  | |__ | |__ |  \/  |/ ___||  _ \
  | '_ \| '_ \| |\/| | |    | |_) |
  | | | | |_) | |  | | |___ |  __/
  |_| |_|_.__/|_|  |_|\____||_|
  Harbour's Reference Implementation
                      for MCP.

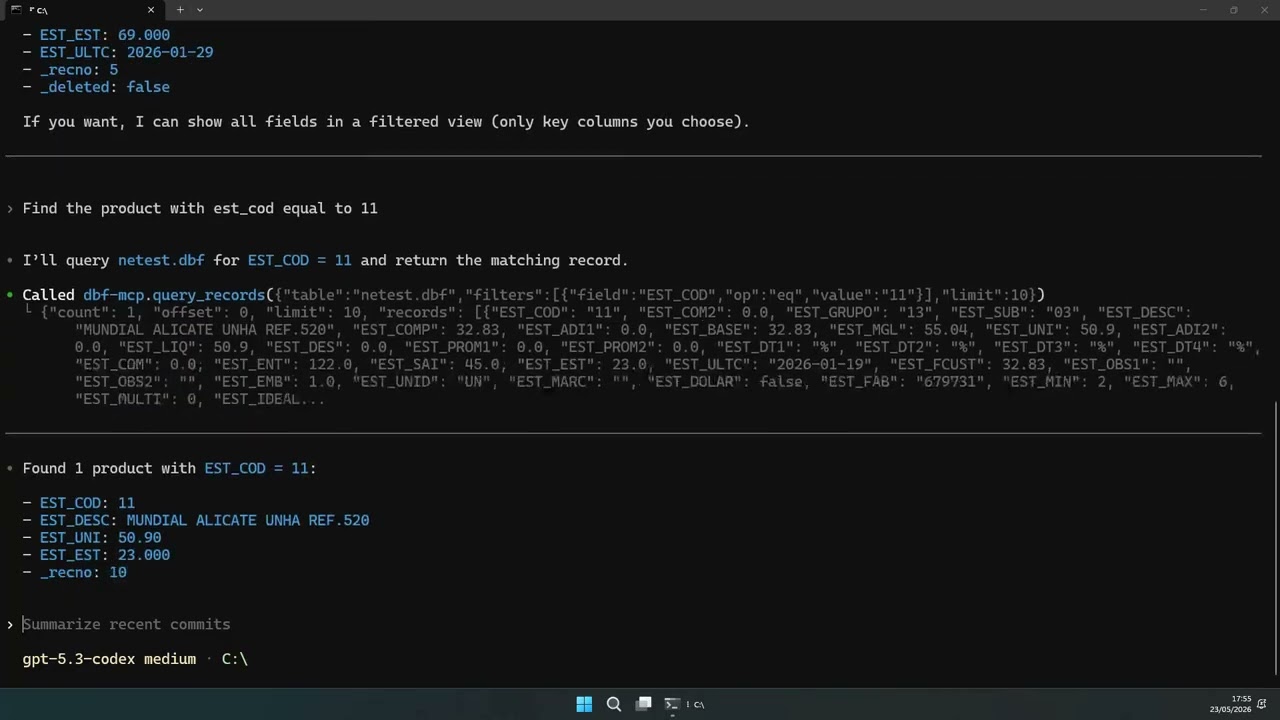

Watch the demo: https://youtu.be/WWVnEWFp_mU

Pure-Harbour library that turns any Harbour application into an MCP server (Model Context Protocol), exposing tools to LLM clients such as Claude Desktop, MCP Inspector, MCP-aware IDEs, etc.

• Language: Harbour 3.2-dev
• Transport: stdio (JSON-RPC 2.0, newline-delimited)
• Role: MCP server (exposes tools/resources)
• Platforms: Windows, Linux (hbmk2 cross-compile)
• Status: stable - lib + 6 didactic samples + tests passing, MT

Build

hbmk2 hbmcp.hbp

Produces hbmcp.lib (Windows MSVC) or libhbmcp.a (Linux/MinGW).

Minimal API

#include "hbmcp.ch"

PROCEDURE Main()

   MCPSetServerInfo( "my-app", "1.0.0" )            // server identity

   MCPRegisterTool( ;
      "sum", ;                                      // name
      "Adds two integers.", ;                       // description
      { ;
         "type"       => "object", ;                // JSON Schema
         "properties" => { ;
            "a" => { "type" => "integer" }, ;
            "b" => { "type" => "integer" } }, ;
         "required"   => { "a", "b" } }, ;
      {| hArgs | hb_NToS( hArgs[ "a" ] + hArgs[ "b" ] ) } )  // callback

   MCPRun()    // blocking stdin loop
   RETURN

Server build file (see samples/echo_server.hbp):

-incpath=../include
-L..
-lhbmcp
-mt
-gtcgi
-o${hb_name}

echo_server.prg

IMPORTANT:

• -gtcgi is mandatory. Without it, Harbour attaches a windowed GT and breaks the MCP stdio transport.
• -mt is mandatory. The library calls hb_threadStart / hb_mutexCreate. Single-thread builds will not link.

Smoke test

Linux/macOS:

printf '%s\n%s\n%s\n' \
  '{"jsonrpc":"2.0","id":1,"method":"initialize","params":{}}' \
  '{"jsonrpc":"2.0","id":2,"method":"tools/list"}' \
  '{"jsonrpc":"2.0","id":3,"method":"tools/call","params":{"name":"sum","arguments":{"a":40,"b":2}}}' \
  | ./samples/echo_server.exe

Windows (PowerShell):

@'
{"jsonrpc":"2.0","id":1,"method":"initialize","params":{}}
{"jsonrpc":"2.0","id":2,"method":"tools/list"}
{"jsonrpc":"2.0","id":3,"method":"tools/call","params":{"name":"sum","arguments":{"a":40,"b":2}}}
'@ | .\samples\echo_server.exe

Expected: 3 valid JSON-RPC responses (the last one carrying "text":"42").

Samples

Suggested reading order (details in samples/README.md):

#	Sample	What it shows
1	echo_server	Tool registration, JSON schema basics, minimal callback.
2	fs_tools	Real I/O, optional args, enum in schema.
3	dbf_query	DBF as data source (DbCreate/DbSkip/Eof), array-of-hash returns.
4	mini_erp	Two related DBFs, aggregation, sort, date math.
5	slow_demo	Deliberately slow tools to observe MT in action.
6	error_demo	Crashing tools. Shows RTE trap + Clipper-style report.

Every .prg opens with a narration block explaining what it teaches and how to run it.

MCP Inspector

npx @modelcontextprotocol/inspector samples/echo_server.exe

Claude Desktop integration

Edit %APPDATA%\Claude\claude_desktop_config.json (Windows) or ~/Library/Application Support/Claude/claude_desktop_config.json (macOS):

{
  "mcpServers": {
    "hbmcp-demo": {
      "command": "G:\\Projetos\\hbmcp\\samples\\echo_server.exe"
    }
  }
}

Restart Claude Desktop. The echo and sum tools become available in the chat.

Codex integration

Add the server using Codex CLI:

codex mcp add hbmcp-demo --command "G:\\Projetos\\hbmcp\\samples\\echo_server.exe"
codex mcp list

Equivalent manual config (~/.codex/config.toml):

[mcp_servers.hbmcp-demo]
command = 'G:\Projetos\hbmcp\samples\echo_server.exe'

inspect.bat helper

For quick visual debugging of any sample server, use samples\inspect.bat. It launches MCP Inspector and validates common prerequisites (.exe exists, Node.js present, Node >= 18, npx available).

samples\inspect.bat echo_server

You can pass the sample name with or without .exe.

Layout

hbmcp/
+-- hbmcp.hbp              # library build
+-- hbmcp.hbc              # component file (reserved for future use)
+-- include/hbmcp.ch       # public defines
+-- src/
|   +-- mcp_jsonrpc.prg    # JSON-RPC 2.0 parse/encode
|   +-- mcp_registry.prg   # tool registry
|   +-- mcp_protocol.prg   # initialize / tools / ping handlers
|   +-- mcp_server.prg     # public API + stdin loop
+-- samples/
|   +-- README.md          # didactic reading order
|   +-- compile_all.bat    # builds every .hbp in this folder
|   +-- echo_server.{prg,hbp}   # minimal MVP (echo, sum)
|   +-- fs_tools.{prg,hbp}      # I/O and schema enum
|   +-- dbf_query.{prg,hbp}     # DBF as data source
|   +-- mini_erp.{prg,hbp}      # ERP: customers + invoices
|   +-- slow_demo.{prg,hbp}     # MT demo (sleep / busy / tick)
|   +-- error_demo.{prg,hbp}    # RTE trap demo (Clipper-style report)
|   +-- inspect.bat        # MCP Inspector launcher
|   +-- data/              # DBFs generated at runtime
+-- tests_disabled/
|   +-- test_jsonrpc.prg (disabled)
|   +-- test_jsonrpc.hbp (disabled)
+-- plans/                 # implementation plans

Public API

Function	Description
MCPRegisterTool( cName, cDesc, hSchema, bCallback )	Register a tool. Callback receives hArgs and returns a value (string/hash/number/array), or a hash with a "content" key for a full MCP response.
MCPSetServerInfo( cName, cVersion )	Sets the serverInfo returned in the initialize handshake. Defaults to "hbmcp" + library version.
MCPRun()	Blocking loop. Reads stdin line-by-line, dispatches JSON-RPC, writes stdout.
MCPLog( nLevel, cMsg )	Structured log to stderr. Levels: MCP_LOG_DEBUG/INFO/WARN/ERROR.
MCPSetLogLevel( nLevel )	Sets the minimum level. Returns the previous level.

Scope

Implemented:

• initialize + notifications/initialized handshake
• tools/list, tools/call
• ping
• Standard JSON-RPC errors (-32700/-32600/-32601/-32602/-32603)
• Structured stderr logging (stdout reserved for the protocol)

Callback error trap:

• A crashing tool never brings the server down. The library wraps every Eval(callback) in BEGIN SEQUENCE / RECOVER.
• The response follows the MCP execution-failure shape: result.isError = true with content[0].text carrying a multi-line, Clipper-style report (reconstructed expression, human description, arguments, stack with [lib] tag, Harbour error codes). Inspector and Claude Desktop render the full text in the tool result panel.
• See samples/error_demo.prg for covered cases (undeclared variable, division by zero, array out of bounds, NIL arithmetic).

Concurrency:

• MT build (-mt) is mandatory for the library and for every executable that links it.
• tools/call runs in its own thread (hb_threadStart). The stdin reader keeps serving ping, tools/list, and new tools/call requests. Responses may arrive out of order; the client correlates by id.
• mcp_writeLine and MCPLog are mutex-protected to prevent output interleaving.
• Contract: call MCPRegisterTool and MCPSetServerInfo only BEFORE MCPRun. Callbacks must open and close their own DBF workareas - a workarea opened in thread A is invisible to thread B.

License

MIT. See LICENSE.
