[ijogendrajat]

Category: Rive · Entry: dash-apps/contest/ijogendrajat-horizon/ (one folder, nothing else changed) · horizon.riv is about 90 KB

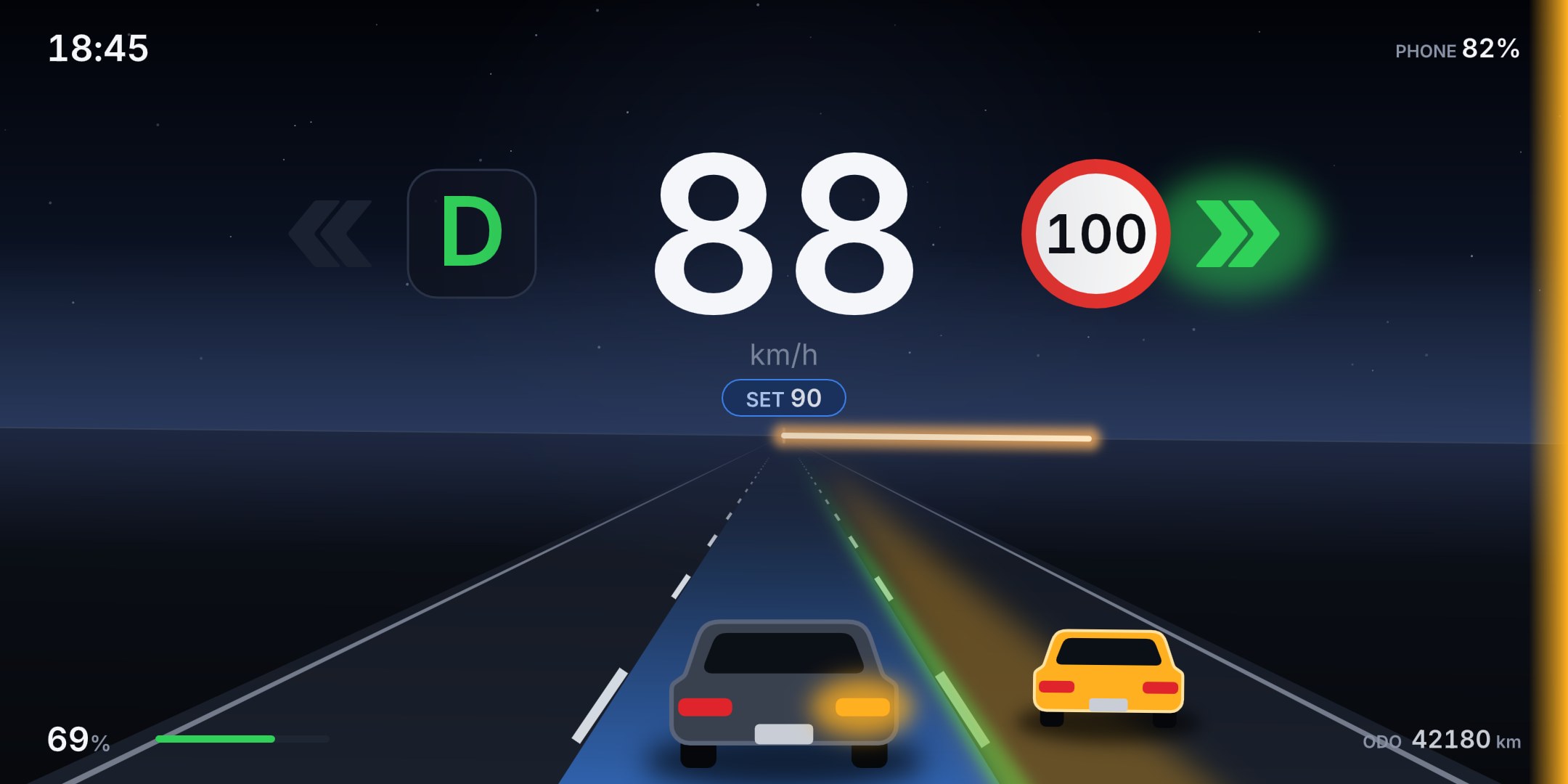

Horizon is a night drive. The speed sits large in the sky, and the car's data shows up in the road scene around it:

• Speed turns amber more than 2 over fusedSpeedLimit. The lane markings flow toward you at the car's speed: a nested Road timeline plays through a NestedSimpleAnimation whose speed is bound to egoSpeed, so no scripting is needed.
• Steering tilts the horizon slightly, like an attitude indicator.
• Power and regen fill the horizon line, warm to the right for power and green to the left for regen.
• Blinkers light the green chevrons, the lane line on that side and the tail light on that side.
• Blind spots show a car in the adjacent lane, amber or red when urgent, plus an edge glow. They appear with the blinker on that side, or always with alwaysOnBlindSpotMonitor.
• Traffic light tints the sky, and the stop line is drawn in perspective at stopLineDist.
• Assist puts a blue carpet in your lane (orange in experimental mode) and shows the SET speed pill.
• Status: gear, speed-limit sign (EU round / US rectangle), battery, door and seatbelt chips, speed camera, odometer, clock and phone battery. Metric/imperial and the show* settings are respected.

Built on DashViewModel (viewmodel.rml is unchanged from rive/dash-demo/) and laid out with layouts from 1440 to 2340 units wide. The source is in src/: gen.py writes the RML, and rive . --once rebuilds the .riv. The only asset is the Inter font (OFL 1.1, the same files the dash-demo ships). All the art is my own vector work in Rive markup.

Screen recording: coming soon, recorded in DashPilot with the Demo data source.

🤖 Generated with Claude Code

[wpmed92]

@ijogendrajat Thank you for your contest PR! To complete your submission, don't forget to send the screen recording on Discord. Until the Submission window is open, you can make changes to your PR.

[philoh-dev]

Holy, thats lit. @ijogendrajat if you want actual assets of teslas and tesla-like vehicles, hmu in discord (phils1krr). I have some claude skills to support you 😎
