🧠 CodeRAG AI

Chat with Your Codebase Using AI-Powered Dependency Graphs

🌐 Live Demo • 📸 View Screenshots • 🚀 Quick Start • 🏗️ Architecture

---

Revolutionary RAG system that builds dependency graphs using Tree-sitter for context-aware code understanding

---

🌟 Why CodeRAG AI?

Traditional RAG systems break code context with random chunking. CodeRAG AI is different.

❌ Traditional RAG 📄 Random chunking breaks meaning 🔍 Loses code dependencies ❌ No function/class relationships 💬 Generic, context-free responses ⚠️ Ignores import dependencies

✅ CodeRAG AI 🌳 Context-rich AST-based chunking 🧬 Full dependency graph tracking ✅ Function, class, import resolution 🎯 Context-aware with relationships 🔗 Inter-file dependency mapping

---

✨ Key Features

Feature	Description
🌳 Tree-sitter Parsing	Context-rich chunking that preserves code structure
🔗 Dependency Graphs	Complete function, class, and import relationship mapping
🗄️ Neo4j Storage	Graph database with vector embeddings for semantic search
🤖 Gemini-Powered	AI responses with full codebase context
🔄 Session Management	Create new sessions or rejoin existing conversations
🎯 Smart Context	Retrieves code with all dependencies intact
💡 Natural Queries	Ask "define loginController" - automatically enhanced
📊 Multi-Language	Supports multiple programming languages via Tree-sitter
🔐 Persistent Sessions	Use session IDs to continue conversations anytime

---

🏗️ Architecture

Core Innovation: Dependency Graph Construction

┌─────────────────┐      ┌──────────────────┐      ┌─────────────────┐
│   Git Clone     │ ───> │  Tree-sitter     │ ───> │  Extract Nodes  │
│   Repository    │      │  AST Parser      │      │  & Chunks       │
└─────────────────┘      └──────────────────┘      └─────────────────┘
                                                            │
                    ┌───────────────────────────────────────┘
                    ▼
        ┌─────────────────────────┐
        │  Build Dependency Graph │
        │  • Function calls       │
        │  • Class calls          │
        │  • Import resolution    │
        │  • Sibling relationships│
        └─────────────────────────┘
                    │
        ┌───────────┴────────────┐
        ▼                        ▼
┌───────────────┐        ┌──────────────┐
│ Generate      │        │ Store in     │
│ Embeddings    │        │ Neo4j with   │
│ (Gemini)      │        │ Session ID   │
└───────────────┘        └──────────────┘

📥 Ingestion Pipeline

1. Repository Cloning - Clone via Git with unique session ID
2. File Walking - Extract language from extension, process code files
3. AST Generation - Tree-sitter parses code into Abstract Syntax Trees
4. Import Extraction - Capture all imports for inter-file dependencies
5. Chunk Creation - DFS traversal with MIN_CHUNK_SIZE threshold
   • Node ID: {file_path}:{start_line}:{node_type}
   • Extract: name, calls, siblings, parent relationships
6. Call Resolution - Match function/class calls to actual definitions
7. Import Resolution - Link imports to their source definitions
8. Document Handling - Process README, docs with recursive chunking
9. Graph Storage - Store in Neo4j with embeddings and session ID

🔍 Retrieval Pipeline

1. User Query - Natural language question with session ID
2. Query Enhancement - LLM expands "define loginController" to full context
3. Vector Embedding - Convert enhanced query to vector (Gemini)
4. Top-K Retrieval - Find most similar chunks from Neo4j
5. Dependency Fetching - Retrieve all related nodes (calls, imports, siblings)
6. Context Assembly - Concatenate code with dependencies
7. LLM Response - Gemini generates answer with full context
8. Return Result - Send back to client with session preserved

---

🎯 Session Management

🆕 Create New Session

• Paste any GitHub repository URL
• System generates unique session ID
• Index repository and build dependency graph
• Start chatting immediately

🔄 Join Existing Session

• Use session ID from previous conversations
• Instantly access same codebase context
• Continue conversations anytime
• Share session IDs with team members

Live Application: code-rag.vercel.app

---

📊 Dependency Graph Structure

Chunk Node Schema

{
  "id": "file.py:42:function_definition",
  "name": "loginController",
  "code_str": "def loginController(req, res): ...",
  "ast_type": "function_definition",
  "file": "src/controllers/auth.py",
  "language": "python",
  "start_line": 42,
  "end_line": 58,
  "size": 245,
  "relationships": {
    "belongs_to": ["file.py:10:class_declaration"],
    "parent": ["file.py:5:module"],
    "sibling": ["file.py:60:function_definition"],
    "function_call": ["utils.py:15:function_definition"],
    "class_call": ["models.py:20:class_declaration"],
    "imports_from": ["auth_service.py:5:function_definition"]
  },
  "metadata": {
    "depth": 2,
    "calls": ["validateUser", "generateToken"],
    "type_references": ["User", "AuthService"],
    "is_definition": true,
    "definition_type": "function"
  }
}

Why Dependency Graphs Matter

Problem: Traditional RAG loses context

# Random chunk breaks meaning
def process_payment(order):
    validator = OrderValidator()  # What is OrderValidator?
    if validator.check(order):     # check() definition lost
        return payment_gateway.charge()  # No import context

Solution: CodeRAG preserves everything

• OrderValidator → Links to class definition
• check() → Links to method implementation
• payment_gateway → Resolves import source
• Siblings → Related functions in same file

---

📸 Screenshots

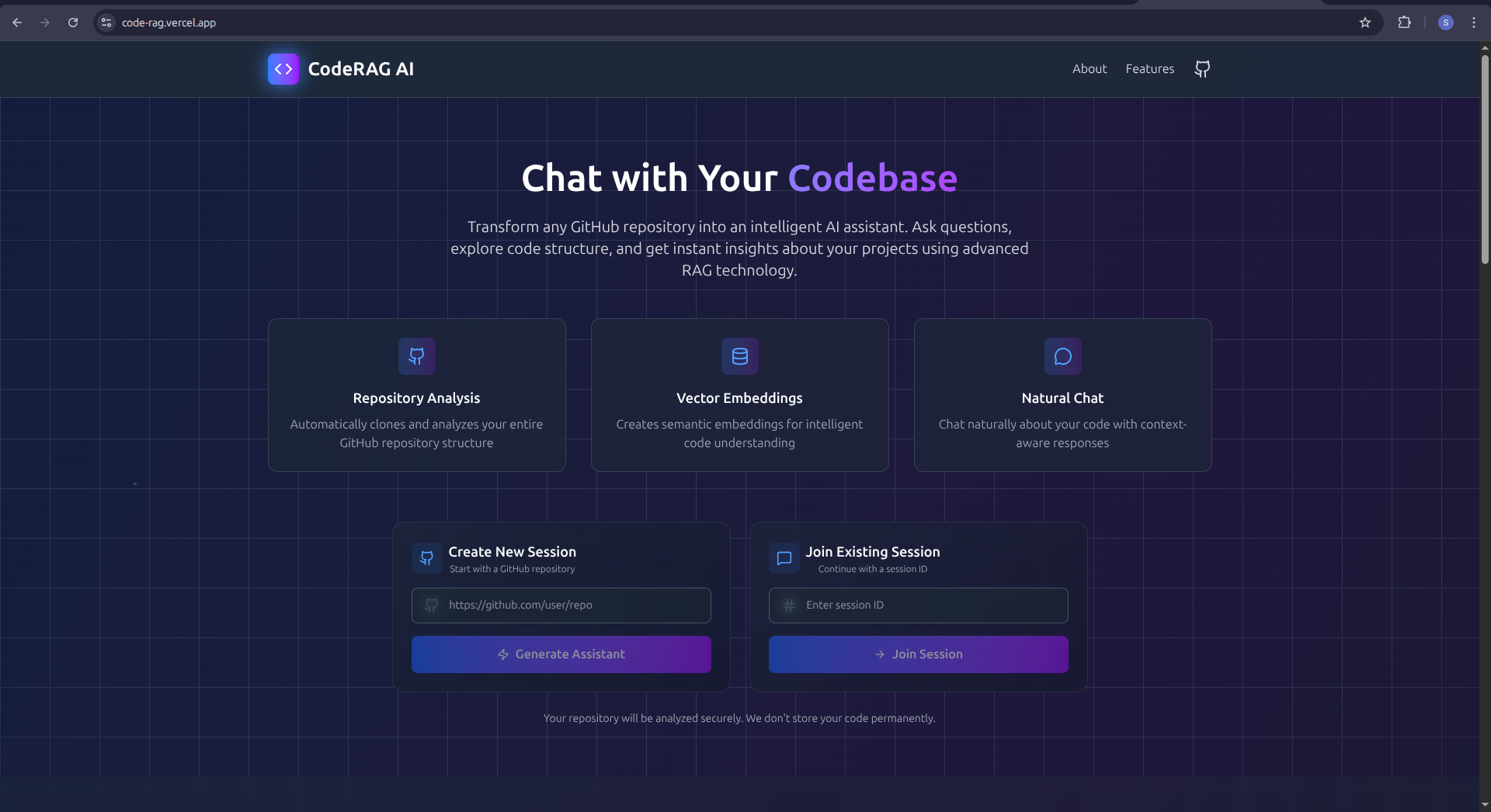

🖥️ Session Selection

Choose to create new session or join existing conversation

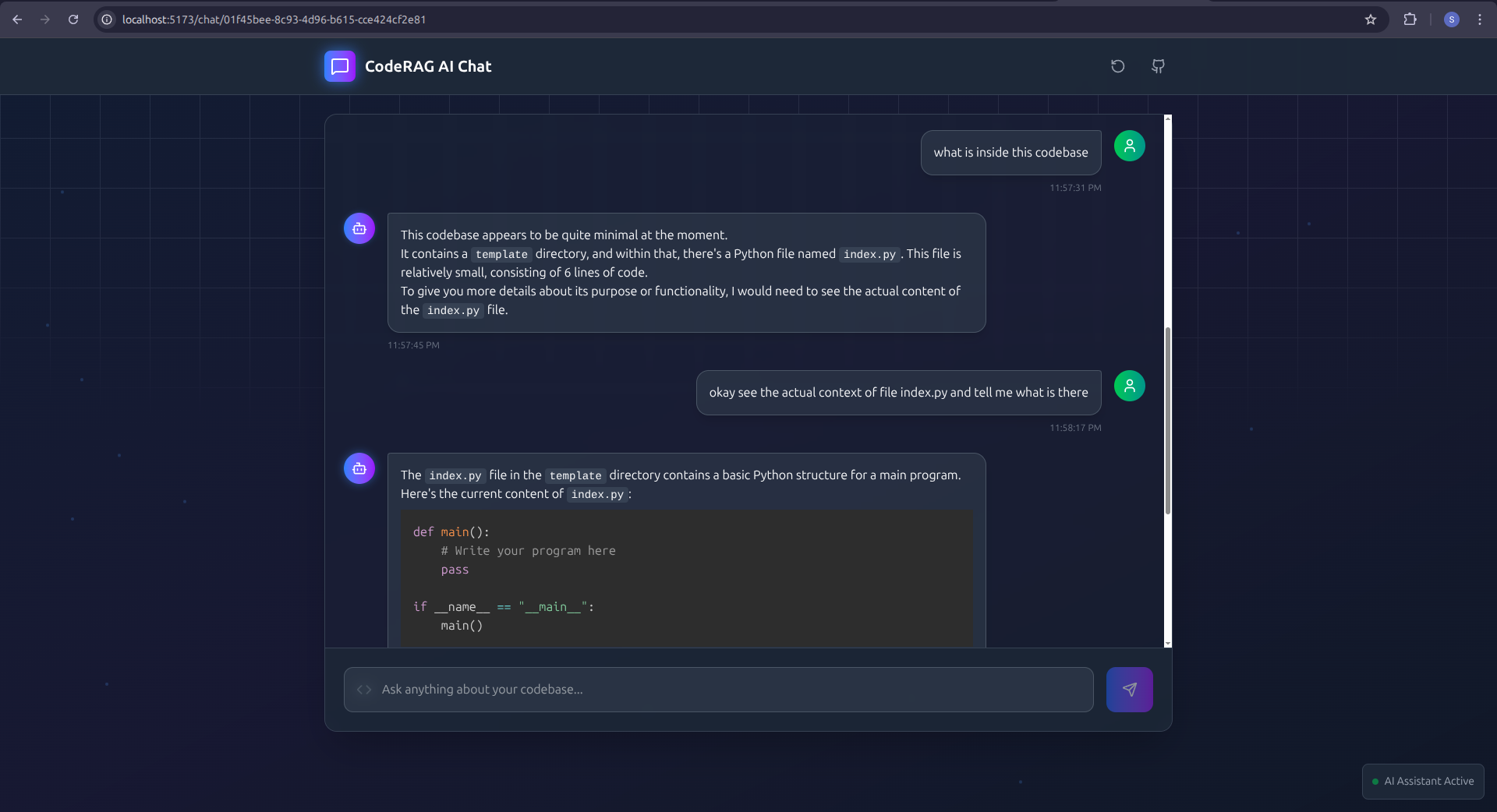

💬 Context-Aware Chat

Natural conversation with full dependency context

🔍 Neo4j Dependency Graph

Visual representation of code relationships

---

🚀 Quick Start

📋 Prerequisites

• 🐍 Python 3.9+
• 📦 Node.js 18+ and npm
• 🔑 API Keys:
  • Neo4j Aura - Graph Database
  • Google AI Studio - Gemini LLM & Embeddings

1️⃣ Clone Repository

git clone https://github.com/shivamsahu-tech/coderag-ai.git
cd coderag-ai

2️⃣ Environment Configuration

Client (client/.env):

VITE_SERVER_URL=http://localhost:8000

Server (server/.env):

NEO4J_URI=neo4j+s://xxxxx.databases.neo4j.io
NEO4J_USERNAME=neo4j
NEO4J_PASSWORD=your-password
LLM_API_KEY=your-gemini-api-key
EMBEDDING_API_KEY=your-gemini-api-key

3️⃣ Install Dependencies

Frontend:

cd client
npm install

Backend:

cd server
python3 -m venv .env
source .env/bin/activate  # Windows: .env\Scripts\activate
pip install -r requirements.txt

4️⃣ Run Application

Backend (Terminal 1):

cd server
source .env/bin/activate
uvicorn main:app --reload

✅ Running at: http://localhost:8000

Frontend (Terminal 2):

cd client
npm run dev

✅ Running at: http://localhost:5173

5️⃣ Start Using! 🎉

1. Open http://localhost:5173
2. New Session: Paste GitHub URL → Wait for indexing
3. Join Session: Enter existing session ID
4. Ask questions about the codebase!

---

🛠️ Technical Deep Dive

Tree-sitter Chunking Strategy

MIN_CHUNK_SIZE determines granularity based on:

• ✅ LLM token limits (directly proportional)
• ✅ Embedding dimensions (directly proportional)
• ✅ Graph density (inversely proportional)

Node ID Format: {file_path}:{start_line}:{node_type}

Example: src/auth.py:42:function_definition

Call Resolution Algorithm

1. Extract calls from AST nodes (e.g., foo())
2. Traverse all chunks to find matching definitions
3. Link caller → callee with function_call relationship
4. Store resolved node IDs in relationship fields

Import Resolution

1. Parse imports_from field (e.g., from auth import login)
2. Identify source file from import path
3. Search source file chunks for matching module
4. Create imports_from relationship edge

---

💡 Use Cases

👨‍💻 For Developers 🔍 Understand unfamiliar codebases instantly 📚 Onboard new team members 10x faster 🐛 Debug with full dependency context 📝 Auto-generate documentation

🏢 For Teams 🤝 Share session IDs for collaboration 📊 Code review with context awareness 🔄 Refactoring impact analysis 🎯 Architecture exploration

---

🧪 Example Queries

"Define loginController"
→ Enhanced: "Explain loginController function, its purpose, related
   functions, and how it handles authentication"

"Where is the database initialized?"
"Show all functions that call validateUser"
"What does the UserService class do?"
"How are imports structured in this project?"
"Find all API endpoints"

---
