Say what a ticket switch is doing while it does it - #205

Merged
juanmaguitar merged 12 commits into
juanmaguitar/patch-deletionsfrom
juanmaguitar/switch-progress
Aug 10, 2026
Merged

Say what a ticket switch is doing while it does it#205
juanmaguitar merged 12 commits into
juanmaguitar/patch-deletionsfrom
juanmaguitar/switch-progress

Conversation

@juanmaguitar

Copy link
Copy Markdown
Collaborator

Why

Switching tickets is a worktree scan and a full git.checkout. On a real wordpress-develop that is seconds, and the window says nothing for all of them.

Every other long operation here streams — installs, scripts, the dev server — so this was the one place where it is taking a while looked exactly like it has hung. The natural responses are clicking again, or force-quitting. And force-quitting part-way through a checkout is precisely what leaves the half-swapped worktree the mid-switch marker exists to recover from: the app was silently inviting the state it then has to rescue people from.

#185 turned switching into a link contributors actually click, so this stopped being theoretical.

What changes

The panel names each stage while it happens: saving your work on the ticket you are leaving, then swapping the files, then ready.

The park stages are the point, and they are entirely synthetic. statusMatrix reports nothing while it runs and is about a third of a switch — and it covers the stretch where the contributor's edits are committed nowhere. "Saving your work on #59234…" is the sentence that stops someone quitting there. git.checkout reports its own progress; the scan and the commit had to be given theirs.

Three decisions a reviewer would otherwise have to reverse-engineer, all measured first:

  • Progress is additive. The handlers still await and return exactly as they did. The obvious alternative — return an id, stream, finish on a :done channel — would mean the renderer subscribes after the invoke answers, and the first event lands ~4ms in. The beginning of every switch would be lost. That ordering gap is already documented in test/preload-listeners.test.cjs.
  • Events are throttled, one per stage change plus one per 100ms. A checkout of 1500 files called back 4395 times in 143ms; unthrottled that is not a channel, it is a flood. The rule that earns its keep is flushing whatever was held when the stage turns over — a line that stops at 87% and jumps to done reads as a hang, which is the failure this exists to prevent.
  • The subscription lives in App, not SiteRow. Every row stays mounted (the parent hides inactive ones), so subscribing per row would open one listener per registered site and wake all of them for each other's events. App already owns this shape for setup logs.

The trunk update feeds its own log rather than this channel — one operation with two progress surfaces is how the two end up disagreeing.

Deliberately not in this PR: deleteTicketBranch also checks out and stays silent; it runs under a different busy flag, so covering it means a second progress surface for a rarely-used destructive action.

How to test this

Platforms: any, but the effect is proportional to the checkout, so a real wordpress-develop shows it and a toy repo will not. Stacked on #198.

Starting state: a site with two ticket branches that have work on them, sitting on one of them with uncommitted edits.

  1. Click switch on the other ticket. → A spinner and a line appear under the panel. The first thing it says is that it is saving your work on # — by number, not ticket/59234.
  2. Watch it through. → The line moves: saving → checking which files change → swapping files, with a percentage → gone. It never sits on one sentence for the whole switch, and never freezes partway and then jumps.
  3. Switch on a site with no changes to park. → The line still appears for the checkout half.
  4. Trigger a switch from the Attach to Trac card's Link ticket field instead. → The same line appears there.
  5. Open a second site in the sidebar, then switch tickets on the first. → Nothing renders on the second site's panel.
  6. Run Update to latest trunk on a site with a linked ticket. → Its terminal shows a handful of park/return stage lines among the update output — and the ticket panel shows nothing, because that flow owns its own log.

What must not have happened:

  • No silent stretch. If any part of the switch shows no line, that is the bug — particularly the beginning, which is the part a :done-channel design would have lost.
  • The line never freezes. A sentence that stops moving and is then replaced by the finished panel means a suppressed frame was dropped.
  • No spinner on an idle panel. After the switch completes (or fails), the line is gone.
  • The switch is no slower. The progress callback is on the checkout's critical path — if a switch takes noticeably longer than before, the throttle is not doing its job.

What could not be tested by hand: a checkout that dies part-way, which needs an EPERM from an editor or antivirus holding a file. Covered by a wiring test asserting the last held frame is still delivered.

Risks and limitations

Review outcome: 3 [fix here] · 2 [follow-up] — all 3 fixed. The first is worth naming here because it is the feature's whole point: the staging stage carried no from, so the sentence dropped to "Saving your work… 41%" for the bulk of the park — losing the ticket number for exactly the stretch where naming it is what stops a force-quit. The scan and commit either side read correctly, which is why it would have looked right in any screenshot.

  • deleteTicketBranch stays silent (above).
  • branches:switch streams to a channel no renderer reaches yet. Deliberate: the send-only channel is invisible to the IPC classification guard, so the day the switcher is wired to that door, silence would arrive with nothing failing.
  • The percentage covers only part of the work. Analyzing workdir reports a count with no total, so that phase gets a sentence and no number rather than an invented one.
  • When a site has no linked ticket and a patch exists, the line renders in both the ticket card and the destination card — two copies of the same true sentence. Cosmetic; noted rather than fixed because this component has no test coverage for its output.

Related

Closes #173. Stacked on #198#185#168, all part of #108's line of work.


Design decisions and alternatives considered

Why not nonBlocking/batchSize on the checkout? They yield to the event loop between batches, which sounds like it would help the events reach the renderer. Measured, they are not needed — the events already arrive spread across the whole checkout (first at 4ms of 143ms, last at 141ms). And they are not free: yielding widens the window in which the worktree is half-swapped, which is the state this issue is trying to make less likely.

Why our own stage vocabulary instead of passing isomorphic-git's phases through? Analyzing workdir is not a sentence for a contributor, and the park stages have no library phase at all. Mapping in one place means a version bump breaks a lookup, not the UI.

Why a shared src/switch-progress.cjs rather than main-side text? The throttle belongs to the sender and the sentence to the renderer, but they are two ends of one contract — payload shape and stage names. Keeping them in one dependency-free module means node --test pins both, and the trunk-update log reuses the throttle in a different mode rather than growing its own.

Review outcome (required — see AGENTS.md)

3 [fix here] · 2 [follow-up] — all 3 fixed. Judgement pass in a fresh context per the skill.

# Dimension What was wrong
1 🟡 Architecture The staging stage omitted from, so the sentence lost the ticket number for the longest stretch of the park. Fixed at the one call site; now asserted on the rendered sentence, not on the payload fields — the fields were what let it through.
2 🟡 Architecture A refused switch left its last frame in the map, so the discard-and-switch that follows a dirty-trunk refusal ran under a spinner describing the attempt that never happened.
3 🔵 Architecture Every flush() was a bare statement after an await, so a switch that threw mid-checkout dropped what the throttle held — contradicting the module's own contract, and in the trunk update losing the last line of the stage that failed. Now in a finally, with a test that fails without it.

[follow-up]: deleteTicketBranch staying silent, and the line rendering twice when both link controls are on screen. Both in Risks.

The review also confirmed the parts most likely to be wrong and were not: the throttle's stage-change flush, emit returning no thenable (isomorphic-git awaits it), the stageWorktree filter being exactly equivalent to the guard it replaced, and the subscription being leak-free.

Implementation notes

Measured before designing, on 1500 files: statusMatrix 91ms · commit 14ms · checkout 143ms, and 4395 checkout callbacks — 3895 of them Analyzing workdir with no total. wordpress-develop is several times that.

test/preload-listeners.test.cjs gains the first coverage of the subscribe* family — one listener per subscribe, removal by handler rather than by channel, independent unsubscribes, payload without the Electron event, double-unsubscribe safe. Pinned for the whole family, not just the new member, because the leak shape (App subscribing once per app rather than once per run) is what makes removal-by-handler load-bearing.

juanmaguitar and others added 6 commits August 9, 2026 00:08
A switch is a worktree scan and a full checkout — seconds on a real
wordpress-develop, during which the window said nothing. Every other
long operation in this app streams, so this was the one place where
"it is taking a while" looked exactly like "it has hung", and the
natural responses are clicking again or force-quitting. Force-quitting
part-way through a checkout is what leaves the half-swapped worktree
the mid-switch marker exists to recover from.

The panel now names each stage as it happens. The park stages matter
most and are entirely synthetic: statusMatrix reports nothing while it
runs and is about a third of a switch, and it covers the stretch where
the contributor's edits are not committed anywhere yet — "Saving your
work on #59234" is the sentence that stops someone quitting there.

Measured before designing: a checkout of 1500 files calls back ~4400
times in 143ms, so the events are throttled to one per stage change
plus one per 100ms. The rule that earns its keep is flushing whatever
was suppressed when the stage turns over, so a line can never stop at
87% and jump to done — a frozen line reads as a hang, which is the
failure this exists to prevent.

Progress is additive: the handlers still await and return exactly as
before. Restructuring into an invoke-then-done pair would have meant
subscribing after the invoke answered, and the first event lands about
4ms in, so the start of every switch would have been lost. The
subscription lives in App rather than SiteRow because every row stays
mounted — one per row would open a listener per registered site.

The trunk update feeds its own log instead of this channel: one
operation with two progress surfaces is how the two end up disagreeing.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…lure held (self-review)

Three findings from the pre-PR review pass.

The one that mattered: the staging stage carried no `from`, so the
sentence dropped to "Saving your work… 41%" for the bulk of the park —
losing the ticket number for exactly the stretch where naming it is the
point. The scan and commit either side of it read correctly, which is
how it looked right in every screenshot. Verified by rendering a real
payload, and now asserted on the sentence rather than on the fields.

The flushes were bare statements after an await, so a switch that died
mid-checkout dropped whatever the throttle was holding — the case where
the last frame is worth most, and in the trunk update the last line of
the stage that failed. They are in a finally now, with a test that
fails without it.

And a refused switch left its last frame in the map, so the
discard-and-switch that follows a dirty-trunk refusal ran under a
spinner describing the attempt that never happened.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…progress

# Conflicts:
#	src/renderer/index.jsx
Same helper, same reason: a park reads the worktree before it does
anything, so how many event-loop turns the result takes is a property
of the filesystem, not of the code.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…progress

# Conflicts:
#	src/renderer/index.jsx
@juanmaguitar
juanmaguitar force-pushed the juanmaguitar/switch-progress branch from 648d767 to ace4778 Compare August 10, 2026 06:28
@juanmaguitar
juanmaguitar merged commit 6cfab9a into trunk Aug 10, 2026
3 checks passed
juanmaguitar added a commit that referenced this pull request Aug 10, 2026
## Why

Found by driving the app, not by the suite.

Link a ticket while you have uncommitted changes on trunk and one of two
things happens, depending on something you cannot see:

- **The ticket already has a branch on this site** → the switch is
refused, and the panel offers to save the changes as a patch or discard
them.
- **The ticket is new here** → the changes come along into the new
branch, **silently**.

Same starting state, same click, opposite outcomes, and nothing on
screen telling you which one you are in. The reporter's words were "algo
nos hemos cargado por el camino" — it read as a regression, because the
app had asked the last time. It had not regressed; they had linked a
ticket the other site happened to already have a branch for.

Carrying the work is the right behaviour and stays. *I started editing,
then realised which ticket this is* is a real sequence, and a
confirmation dialog on it would punish the correct flow. The bug is that
the app moves someone's work without saying so.

## What changes

Two sentences.

**Afterwards** — a notice naming how much came along and where: *"Your 2
uncommitted changes came along into #62281, and will go into its
patch."*

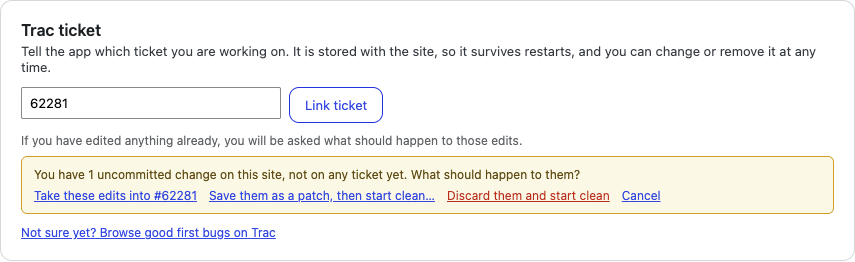

**Beforehand** — a line under the Link ticket field: *"Anything you have
edited so far will come along into a ticket this site has not worked on
yet."* Scoped on purpose: it is false for the tickets listed directly
above it, which are refused instead.

The decision a reviewer would otherwise have to reconstruct: **the count
runs after the answer, on its own channel.** Linking a ticket is a HEAD
move and is instant; counting is a walk of the whole worktree. Holding
the reply for it would make the most common Contributor Day sequence —
install a site, link a ticket, *then* start editing — pay a scan for an
answer that is always zero. It is counted against the new branch's own
HEAD, so the number says what this ticket's patch will contain rather
than what trunk happened to have.

And it is **not** a stage of the switch progress (#173), which was my
first attempt: on trunk with no ticket to name, a `scan` stage renders
as *"Saving your work…"* — about the one branch this whole feature
refuses to write to.

**Deliberately not in this PR:** the count is `statusMatrix`'s idea of
changed, so it includes untracked files a contributor may not think of
as edits. Naming the files instead of counting them would be truer; it
is also a different, larger design.

## How to test this

**Platforms:** any. Stacked on #205.

**Starting state:** a site with **no** ticket branches, sitting on
trunk.

1. Edit a file and create another. Do not link anything yet.
2. Look under the **Link ticket** field. → It says what will happen to
those edits.
3. Link a ticket number this site has never used. → The link is
**instant** — no pause while it thinks — and a moment later a notice
appears: *"Your 2 uncommitted changes came along into #N, and will go
into its patch."*
4. **Submit patch.** → Both files are in it. The notice told the truth.
5. **Unlink**, edit something on trunk again, and now click **Continue
working on #N** for the ticket you just created. → The other path:
refused, with *save as a patch* / *discard and continue*.
6. Link a ticket on a **clean** trunk. → No notice at all.
7. With two sites open, link a ticket on the first. → Nothing appears on
the second.

**What must not have happened:**

- **No pause on step 3.** If linking a ticket now takes a second on a
real `wordpress-develop`, the count is back on the reply path.
- **No claim about trunk.** Nothing in the switch progress line may say
"Saving your work…" while you are on trunk — trunk is never written to,
and saying so contradicts the refusal in step 5.
- **No notice when nothing moved** (step 6), and none on a site that did
not move anything (step 7).
- **The count matches the patch.** If it says 2 and the patch has 3
files, the sentence is worse than silence.

**What could not be tested by hand:** a worktree that cannot be walked
(a permission, a volume that went away). Covered by a wiring test
asserting the link still succeeds, no notice is sent, and the failure
reaches the log.

## Risks and limitations

**Review outcome: 6 `[fix here]` · 2 `[follow-up]` — all 6 fixed.** Two
are worth naming here because both were mine, introduced in the first
commit: the count sat in front of the reply, and the progress frames I
wrapped it in rendered as *"Saving your work…"* on trunk followed by
*"Ready to work on #N"* before the branch existed.

- **The count includes untracked files** the contributor may not think
of as theirs (above).
- **A failed count costs the notice, silently as far as the panel goes**
— deliberately: the link already happened and is not in doubt. It is
logged, so a bug report carries it.
- **The up-front line is static**, not a reading of the worktree. It
costs nothing and holds for the case it describes, but it appears
whether or not anything is actually edited.

## Related

Part of #108. Stacked on #205#198#185#168.

---

<details>
<summary>Design decisions and alternatives considered</summary>

**Why not ask before carrying?** Because the carrying case is the good
one. "I started editing, then realised which ticket this is" is the
sequence the behaviour was designed for, and a confirmation on every new
ticket would tax the correct flow to fix what is an information problem,
not an intent problem.

**Why a separate channel instead of the switch progress stream?** The
progress stream describes an operation while it runs, and its vocabulary
is stages. This is one fact after the fact. Forcing it into a stage
produced literally false sentences (above) — which is the argument,
rather than tidiness.

**Why count against the branch's HEAD rather than trunk?** They are the
same commit at that moment, since `git.branch({checkout:true})` only
moves HEAD. But counting against the branch says "what this ticket's
patch will contain", which is what the sentence claims; counting against
trunk would be describing where the work came from.

</details>

<details>
<summary>Review outcome (required — see AGENTS.md)</summary>

**6 [fix here] · 2 [follow-up] — all 6 fixed.** Judgement pass in a
fresh context per the skill, on the first commit here.

| # | Dimension | What was wrong |
|---|---|---|
| 1 🟡 | Performance | A full worktree walk in front of the reply, on a
path that was a HEAD move — and always zero in the most common flow.
Moved behind the answer, onto its own channel. |
| 2 🟡 | Architecture | The progress frames rendered as "Saving your
work…" on trunk, and "Ready to work on #N" before the branch existed.
Removed; a fact after the fact is not a stage. |
| 3 🟡 | Architecture | `.catch(() => 0)` was a silent catch against the
repo's explicit invariant — and `.catch` does not cover a synchronous
throw, which is exactly what a partial test stub produced. Now logged. |
| 4 🔵 | Tests | Nothing asserted where the scan does **not** run, so a
refactor could have moved it onto every switch with the suite green.
Added. |
| 5 🔵 | Architecture | The second render site was unreachable — it lived
in the no-ticket branch, and the notice only has content once a ticket
is linked. |
| 6 🔵 | Correctness | The up-front line promised work would come along,
directly under a list of tickets for which it is refused. Scoped. |

`[follow-up]`: the count including untracked files, and the
index-vs-worktree edge where a staged-then-reverted file is not counted.
Both in Risks.

Worth flagging rather than burying: **every one of the six was in code
this PR added.** The change is small; the first attempt at it still
managed to put a lie on screen and a scan on the critical path.

</details>

---------

Co-authored-by: Claude Fable 5 <noreply@anthropic.com>
juanmaguitar added a commit that referenced this pull request Aug 10, 2026
## Why

The card's unsubmitted-changes note never appears for the work its own
sentence describes. Link a
ticket, make a change, switch to another ticket, come back — the card
says nothing, while the patch
modal shows the change exactly as it was left. For anyone using more
than one ticket, that is all of
their work.

Observed on a real site, and the two readings disagree on disk:

```
git status                  ->  empty
git diff <baseOid>..HEAD    ->  src/wp-login.php, +3 lines
```

Both answers are correct. They answer different questions, and only one
of them is the question a
contributor is asking. `#239` has the reasoning.

## What changes

**Root cause.** The note measured the worktree against `HEAD`. Under the
ticket-as-branch model
(#108) a ticket parks its work in a WIP commit, so `HEAD`-relative is
*correctly* "clean" for every
change that has survived a ticket switch — which is the work the note
exists to speak about.
`changes-note.cjs` was written before tickets were branches, when "not
written down" and "not
submitted" described the same edits. Splitting them is what opened the
gap.

**The fix is to make the note ask the patch's question**, measured from
the ticket's branch point
rather than from the last time anything was written down. That is the
measurement
`createMinimalPatchForDir` already makes, so this is the two agreeing
rather than a third answer
being invented.

**Which reader wants which question** — the part worth reviewing:

| Reader | Question | Why |
| --- | --- | --- |
| The card's note | **wide** — `git:unsubmitted-work`, from the branch
point | Parked work is unsubmitted work. It is the whole subject of the
sentence. |
| `startTrunkUpdate`'s dirty dialog | narrow — `git:worktree-dirty` | It
protects what a force checkout would overwrite. Parked work survives
one; uncommitted edits do not. |
| The `dirty-trunk` switch refusal (`sites:set-ticket`) | narrow —
`countChangesAgainst` | Same thing: it is about edits on trunk that have
nowhere to go. Trunk is never committed to, so there is no parked work
there to see. |
| `git:preview-patch`'s collision scan | narrow — `collectDirtyFiles` |
It lists the files an incoming patch would collide with in the *working
tree*. |

So the narrow signal is untouched and keeps its channel; the wide one is
a new channel beside it,
and only the note reads it. Nothing was widened underneath a caller that
did not ask for it.

Two consequences that are not obvious from that summary:

- **A discard now reports what it left behind.** On a ticket branch a
discard rewinds to the last
park — the WIP commit is not its to take, since destroying a ticket is
what deleting its branch is
for. The old code asserted "clean" locally after a discard, which would
now hide the note over work
that is still there. `git:discard-changes` replies with a recount and
the card renders that.
- **A branch change re-takes the measurement.** A branch-point count is
*about a particular branch*,
so a stale one is not an old version of the new answer — it is about
different work. Linking,
unlinking, resuming and deleting a ticket now invalidate the note and
walk again. This was a
self-review finding, not part of the original design; see the review
block.

**Deliberately not in this PR:** the note's wording is unchanged (it was
already right — the
reassurance about unlinking is about work that outlives a link, which is
exactly the parked work it
could not see), and #236's applied-patch record is untouched.

## How to test this

**Platforms: any.** The change is git-graph logic through
`isomorphic-git`, with no path, spawn or
line-ending surface. Buildkite has signed artifacts for this branch —
check the build matches the
head commit.

**Starting state:** a site set up and built, with no ticket linked and a
clean tree.

1. Link ticket **12345**. Edit `src/wp-login.php` — add a comment line.
Return focus to the app.
→ The ticket card reads **"You have 1 unsubmitted change for ticket
#12345."**
2. Link ticket **54321** (a ticket this site has not worked on). The
switch parks #12345's work.
→ The card names #54321 and shows **no** changes note. It must **not**
say "1 unsubmitted change
for ticket #54321" — that is the stale-count bug the second commit
fixes, and it is the one thing
   here you have to be looking for to see.
3. Link **12345** again.
→ **This is the bug.** Before this PR the card is silent. Now it reads
**"You have 1 unsubmitted
change for ticket #12345"**, with *review and submit* and *discard your
changes*.
4. Click **review and submit**. → The modal's diff shows the same single
change to `wp-login.php`.
   The note and the modal now agree, which is the whole point.
5. Close the modal and click **discard your changes**, confirm.
   → The note goes away and the tree is clean.
6. Make two edits on #12345. Switch to #54321 and back, then click
**discard your changes**.
   → The note goes away. Nothing is left claiming changes that are gone.

**Then the narrow readers, which must be unchanged:**

7. On **trunk**, with an uncommitted edit, click **Update to latest
trunk**.
   → The dirty-tree dialog still appears and lists the file.
8. On **trunk** with an uncommitted edit, link a ticket.
→ The "decide what happens to it" panel from #238 still appears, with
the same three options.
(This one shares the area with #238 — worth a look for that reason as
much as this one.)
9. Delete a *different* ticket's work from the switcher while on #12345.
→ The note for #12345 stays on screen and does not blink out and back.
Deleting the ticket you are
   **on** does clear it.

**What must not have happened:**

- **No work discarded.** Step 3 is the load-bearing one: the parked
change must still be there and
must still be the only thing in the patch. If the note appears but the
patch is empty, or the patch
gained files from another ticket, the base being diffed against is
wrong.
- **The note must not outlive its branch.** A count from the ticket you
just left, rendered under the
number of the ticket you just arrived at, is the failure mode of this
design — with a live
  *discard your changes* link under it. Steps 2 and 9 are what catch it.
- **`node_modules` must not be rebuilt** by any switch here.
- **The trunk-update and ticket-switch guards must not have loosened.**
If step 7 or 8 stops asking,
the narrow signal was widened and a force checkout can now land on
uncommitted edits.

**Which tests cover it, and the check that they fail without the fix:**
the 10 new tests in
`test/ipc-wiring.test.cjs` and `test/changes-note.test.cjs`. Verified by
resetting `src/` to the
stack base with the tests held at their new state — all 10 fail, 124
pass. The end-to-end one is
`git:unsubmitted-work sees the parked ticket work a clean status hides
(#239)`, which builds a real
repository in the parked state and asserts both readings on the same
tree: `git:worktree-dirty`
clean, `git:unsubmitted-work` dirty.

**What could not be tested by hand:** nothing in this change; every path
above is reachable in the
app. What is *not* covered by the suite is the wiring in `index.jsx` —
`reprobeAfterBranchChange`
being called from the right places is a call, not a branch, so it is
verified by steps 2 and 9 rather
than by a test (see Risks).

## Risks and limitations

**Review outcome: 5 [fix here] · 1 [follow-up] — all 5 fixed, 1
deferred.** Two passes; the first
found a bug this PR introduced. Detail in the collapsed block.

- **The focus probe costs more than it did.** `collectChangedFiles`
reads both sides of every changed
row into buffers and decodes them, where `collectDirtyFiles` read a blob
only for CRLF candidates —
and the note probes on every window focus. `statusMatrix` still
dominates, and the changed-row count
is small for a normal ticket, so no user-visible path was identified.
Deferred rather than fixed:
the cheap version needs the buffers only up to the line-ending
comparison, which is a change to the
shared classifier and belongs on its own. **Follow-up issue not yet
filed** — happy to file it.
- **`index.jsx` wiring is not test-covered.** The re-probe calls live in
the component, which the
suite cannot load. The *decisions* are all in `changes-note.cjs` with
tests, per the repo
invariant; what is untested is that they are called from the right four
places. Steps 2 and 9 of
  the manual test are what stand in for that.
- **`branches:delete` gained a reply field** (`movedToTrunk`). Additive,
and no stored shape changed,
  so there is no migration.
- **This PR sits on #238, which touches the same handlers.** Rebased
onto its current tip (`0c9902c`)
  rather than merged, so the stack keeps one shape.

## Related

Closes #239.
Sits on #238 (base branch), the tip of #168#185#198#205#218#238.
Related: #234 (the other decision that hangs on this reading of
"changes"), #236 (the same shape
again — one thing moved to a branch, another stayed behind), #108 (the
ticket-as-branch model that
split the two questions apart).

---

<details>
<summary>Design decisions and alternatives considered</summary>

**Rejected: widen `git:worktree-dirty` so everyone gets the branch-point
answer.** The smallest diff
and the wrong one. It would have made the trunk-update dialog offer to
save and discard *parked*
work, and made the `dirty-trunk` refusal fire for a ticket that has
nothing loose in its tree at all
— a switch refused over work that is already safely committed. The issue
calls this out directly, and
it is the finding I most expected to have to defend, so: two questions,
two channels, and a table in
"What changes" saying which caller asks which.

**Rejected: derive the note's count in the renderer from the patch
text.** The modal already fetches
a diff; counting its `+++` lines would have needed no new channel. But
it means generating and
transferring the full patch on every window focus to answer a yes/no,
and it makes the note's truth
depend on the patch *renderer* rather than on the walk. The count and
the diff should be two readings
of one walk, not one derived from the other's output.

**Why the classifier was extracted rather than the count re-derived.**
`collectUnsubmittedFiles`
could have filtered on its own rules — "skip binaries, skip
line-ending-only churn". It would have
drifted from the patch's rules within one change to either.
`classifyChangedFile` now holds that
decision once and both read it, which is what makes "the note and the
modal never disagree" a
property of the code rather than a promise. It also decides the *count*:
a binary change counts,
because the patch names it above the diff and the contributor has to
hear about it, while a
CRLF-only difference does not, because nothing would be in the patch.

**Why a discard reports a recount instead of the renderer re-probing.**
It could have called
`refreshDirty()` after the discard. The reply is better: it is one walk
instead of two, it cannot
race the probe already in flight, and it makes "what survived this" a
fact the main process states
rather than something the renderer infers from a second question. The
recount is non-fatal — if it
throws, the discard still succeeded and the reply just says less.

**`branches:delete` gained `movedToTrunk` rather than the renderer
inferring it.** `current` reports
`trunk` both when the delete took the checkout with it and when the
delete was simply *made* from
trunk. The renderer cannot tell those apart, and it now re-walks the
tree on this answer, so main
states the fact instead. Pinned by a test that asserts `current` is
`trunk` on a path where
`movedToTrunk` is false — the exact ambiguity that made the field
necessary.

</details>

<details>
<summary>Review outcome (required — see AGENTS.md)</summary>

**5 [fix here] · 1 [follow-up] — all 5 fixed, the follow-up deferred
with a reason.**

Run per `.claude/skills/self-review`, dispatching the judgement pass to
a subagent with the diff and
`.github/instructions/code-review.instructions.md` and nothing else from
the authoring session. Run
twice: the first pass found a bug the fix itself introduced, so the
second pass reviewed the
corrections. Deterministic layer clean throughout — `npm run lint`
passes, and the suite is green on
`.nvmrc`'s Node (24.18.0) and on Electron's bundled Node.

**First pass — 2 [fix here] · 1 [follow-up]:**

1. **🟡 architecture, `index.jsx` — the note was never re-taken when the
branch changed.** Introduced
by this PR: with a `HEAD`-relative probe the post-switch answer was
always "clean" and a stale
value was harmless; a branch-point measurement changes with the branch.
So resuming a ticket
showed the *previous* ticket's count next to the *new* ticket's number,
with a working discard
link, until the window lost focus. **Fixed** —
`reprobeAfterBranchChange` on every path that moves
the checkout, clearing the note while the new walk runs so no wrong
sentence is ever rendered. The
probe's `inFlight` guard also silently dropped a request made mid-walk,
which was safe only while
the answer could not change without the window losing focus; it now
queues and re-runs.
2. **🔵 architecture, `index.jsx` — an inline second answer to a question
the module already
answered.** `noteAfterDiscard` decided "does this reply carry a recount"
inline, slightly
differently from `discardOutcome`, and its three call sites disagreed
about whether they passed a
raw reply or a normalised one. Exactly the shape of #180, and against
the §1 invariant. **Fixed** —
the decision is `noteAfterDiscard` in `changes-note.cjs` with its own
tests; the component holds
   a state assignment and a call.
3. **🔵 performance, `main.js` — the focus probe reads and decodes more
than it used to.**
   **Deferred**, see Risks.

**Second pass — findings 1 and 2 confirmed resolved; 2 new [fix here],
both 🔵, both fixed:**

4. **architecture — `deleteTicketWork` re-walked unconditionally.**
Deleting a ticket you are not on
does not move the checkout, so the note blanked and rebuilt the
identical sentence, paying a full
walk for a tree that never changed; and the walk was started before
`loadStatus()`, so a fast
answer could render trunk's count under the ticket number the delete had
just cleared. **Fixed** —
`movedToTrunk` (new, tested) gates it, and it runs after the status
reload.
5. **architecture — the discard behind "discard them and start clean"
dropped its recount.** Harmless
on the happy path, since the switch that follows re-walks; but a switch
that *fails* returns
without re-probing, leaving the note offering to discard trunk work that
was already gone —
   finding 1's shape on a narrower path. **Fixed.**

The second pass also verified the parts most likely to be wrong and
found them sound: the `do/while`
probe queue cannot spin or leak `inFlight` (the only `await` is inside
the inner try, and no `await`
separates the loop test from the `finally`), the `useCallback`
dependency arrays are complete,
`setWorktreeDirty(null)` is safe for its single reader, and
`classifyChangedFile` preserves the
original precedence exactly so patch output is byte-identical.

</details>

<details>
<summary>Implementation notes</summary>

- **`src/main.js`** — `classifyChangedFile` extracted from
`createMinimalPatchForDir`, preserving its
precedence (unreadable workdir → unreadable base → binary →
line-ending-equal → text) so the patch
is unchanged. `collectUnsubmittedFiles` runs `patchBaseOid` +
`collectChangedFiles` and keeps
everything the patch would speak about. New `git:unsubmitted-work`
handler beside
`git:worktree-dirty`, same reply shape. `git:discard-changes` appends
the recount.
- **`src/preload.js`** — `hasUnsubmittedWork`, a named bridge function;
the surface is not widened.
- **`src/renderer/changes-note.cjs`** — `discardOutcome` passes a
recount through when there is one;
new `noteAfterDiscard` decides the post-discard card state, falling back
to clean when a reply
carries no recount (what the old `markTreeClean` asserted
unconditionally).
- **`src/renderer/index.jsx`** — the probe reads the new channel;
`markTreeClean` becomes
`applyDiscardToNote`; `reprobeAfterBranchChange` added and called from
`saveTicket` (which every
link, unlink, resume and carry funnels through) and `deleteTicketWork`.
- **On trunk** `patchBaseOid` returns `null` and the walk falls back to
`HEAD`, so a site that never
  linked a ticket gets exactly the answer it always got. Pinned by
  `git:unsubmitted-work matches git:worktree-dirty on trunk (#239)`.

</details>

---------

Co-authored-by: Claude Fable 5 <noreply@anthropic.com>
juanmaguitar added a commit that referenced this pull request Aug 10, 2026
…es that predate it (#245)

> [!WARNING]
> **Do not merge this before the ticket-branches stack (#168 #185 #198
#205 #218 #238 #241 #242 #243).** It documents features that are not on
trunk yet. Merged first, the published guide describes an app nobody can
download.

## Why

The user guide describes a site as one working tree and one implicit
patch, because that is what the app was when the guide was written. The
ticket-branches stack makes a ticket a branch on the site, which leaves
several pages not merely incomplete but wrong: what a patch contains,
what **Unlink** costs you, what a trunk update does to work in progress,
whether the applied-patch banner describes the ticket you are looking
at.

The stack also adds surface nothing documents at all — the tickets card,
the question asked about edits made before a ticket was picked, the note
about unsubmitted work, the switch progress line, coloured pull request
states.

## What changes

Docs only. The diff is `docs/` — guide pages,
`docs/.vitepress/config.mjs` for the sidebar, and screenshots. No
`src/`, no `scripts/`.

**New page: `guide/ticket-branches.md`, "Working on several tickets".**
The model (a site is the expensive substrate, a ticket is a cheap
branch), starting a second ticket, the tickets card in both its states,
what a switch says while it runs and what to do when one fails part-way,
deleting one ticket's work, the four-choice question about loose trunk
edits, the unsubmitted-work note, and what a ticket's patch does and
does not contain. Added to the sidebar under "Contributing changes",
after "Working on a Trac ticket".

**Corrections to pages that describe the old model:**

| Page | What was wrong |
| --- | --- |
| `trac-tickets.md` | Unlink described as only forgetting an
association; no mention that a site holds many tickets, that linking
asks about loose edits, or that PR states are now coloured pills with a
third value |
| `submitting-changes.md` | "everything this site has that its copy of
trunk does not" — the diff is now the ticket's own work, measured from
its branch point. Also gained what a patch can and cannot carry:
deletions now travel, binaries and unreadable files are named above the
diff rather than dropped |
| `trunk-updates.md` | Said nothing about being on a ticket — that the
update parks and returns, and that the branch point deliberately does
not move |
| `applying-patches.md` | Applied-patch state is per ticket now; and
"use Update to latest trunk to reset the checkout" does not hold on a
ticket branch, where the update puts you back exactly where you were |
| `creating-a-site.md` | Implied a site per piece of work |
| `managing-sites.md` | **Delete this site** takes every ticket's work
with it; and its dirty-tree dialog is about loose edits only, never
parked ticket work |
| `troubleshooting.md` | New entry for the refused-switch message, which
is what someone will search for |
| `getting-started.md`, `setup-wizard.md`, `submit-*.md`,
`running-the-site.md` | The button is **Review & submit changes**; the
guide still quoted **Submit changes** everywhere |

**Deliberately not in this PR:** new entries in
`scripts/screenshots/shots.cjs` for the panels the stack adds. A shot
definition belongs with the code that draws the panel, and one added
here would fail on trunk where the panel does not exist — see Risks.

## How to test this

**Platforms:** any. This is a static site; nothing here touches the app.

**Starting state:** this branch checked out.

1. `npm run docs:build` → completes. This is the real check:
`ignoreDeadLinks: false`, so a broken link or a missing image fails it.
2. `npm run docs:dev` and open `/guide/ticket-branches` → the page
renders, the six screenshots load, and "Working on several tickets" is
in the sidebar under **Contributing changes**, between "Working on a
Trac ticket" and "Applying patches and PRs".
3. Follow the internal links out of that page —
`#what-a-patch-contains`, `#edits-you-made-before-picking-a-ticket`,
`#deleting-a-ticket-s-work`,
`trunk-updates#updating-while-you-are-on-a-ticket`,
`submitting-changes#what-a-patch-can-and-cannot-carry` → each lands on
the heading it names, not at the top of the page.
4. `npm run lint` → clean.

**And the part a build cannot check** — drive the stack (the Buildkite
artifact for `juanmaguitar/pr-state-colours` exercises all nine PRs)
with the new page open, and check the prose against the app:

5. On a site with two tickets, read "Starting a second ticket" and
follow it literally. → Unlink, then type the second number. The page
should not describe a control that is not on screen.
6. Read the switch progress sentences in the page against the ones the
panel actually shows.
7. Compare the six screenshots against the panels as they render for
you.

**What must not have happened:**

- **No `src/` or `scripts/` file in the diff.** `git diff --stat
origin/trunk...HEAD` must list only `docs/`. If a screenshot-harness
change slipped in, it will fail on trunk.
- **No invented UI string.** Every label quoted in these pages was read
out of the stack's source or seen in the app. A plausible-sounding
button that does not exist is worse than no documentation.
- **No page left describing the old model.** The table above is the
list; if another page still says a site carries one ticket, it was
missed.

## Risks and limitations

**This PR must merge after the stack.** It is the only real risk here
and it is not defended by anything automated: nothing in CI knows the
difference. The Pages deploy runs on trunk, so merging early publishes
it immediately.

- **`scripts/screenshots/shots.cjs` has no entries for the new panels**,
so the six new images are not reproducible with `npm run shots` as
things stand. They were taken by driving the stack through the same
Playwright harness in a throwaway worktree, with fixture and shot
definitions that were not committed anywhere. Follow-up, and it belongs
on a branch that has the panels: the fixtures need real repositories
with ticket branches, where the current ones are empty directories.
**Follow-up issue not yet filed** — happy to file it.
- **`site-view.png` is re-shot** and is the only existing image
replaced. Its button still read **Submit changes**, which was already
stale on trunk after #235 renamed it — so that image and the text
corrections around it are true of trunk today, stack or no stack.
- **The `MERGED` pill is documented but not screenshotted.** A
repository-wide search returns no merged pull requests on
`wordpress-develop`; the state is real in the API and unit-tested, and
#243 says the same.
- **The screenshots name a real ticket and its real pull requests**
(#29798), pulled live from GitHub when the images were taken. They will
age the way any screenshot of live data ages.
- Review outcome: **5 [fix here] · 1 [follow-up] — all 6 addressed.**
Every one was a factual claim about the app, not prose. Details in the
collapsed block.

## Related

Documents #168, #185, #198, #205, #218, #238, #241, #242, #243 — the
ticket-branches stack, tip branch `juanmaguitar/pr-state-colours`. Part
of the contribution-flow tracker #110. Follows the docs site (#230), its
screenshot harness (#231) and the guide itself (#232).

---

<details>
<summary>Design decisions and alternatives considered</summary>

**A new page rather than growing `trac-tickets.md`.** That page is about
one ticket: linking it, and reading the work that already exists on it.
Several tickets is a different subject with its own vocabulary —
parking, switching, deleting a branch — and folding it in would have
doubled the length of a page a first-time contributor reads on their
first ticket, to describe something they do not do yet.
`trac-tickets.md` gains pointers instead.

**Corrections before additions.** A page that is wrong costs more than a
page that is missing: someone acts on it. So the pass over the existing
guide came first, and the new page was written to fill what was left.

**Screenshots taken by hand rather than by adding shot definitions.**
The harness lives on trunk and the panels live on the stack, so a shot
definition committed here would fail every `npm run shots` on trunk
until the stack lands. The images were taken by assembling the two in a
scratch worktree — stack tip, plus trunk's `scripts/screenshots/` and
the `TOOLKIT_USER_DATA_DIR` hook, plus fixtures that build real
repositories with ticket branches — and only the resulting PNGs were
copied here. That worktree is gone; nothing of it is in this diff.

**Quoting the app rather than paraphrasing it.** Where a sentence in the
app is the thing being explained — the question about loose edits, the
switch stages, the confirm before a delete — the page quotes it
verbatim, so someone reading with the app open can match what they see.
Every quote was read out of the stack's source.

</details>

<details>
<summary>Review outcome (5 [fix here] · 1 [follow-up] — all
addressed)</summary>

Run per `.github/instructions/code-review.instructions.md`.
Deterministic layer inline and clean — `npm run lint` clean, `npm test`
638/638, `npm run docs:build` clean. The judgement pass went to a
subagent with the diff, the instructions file and the stack's source,
and nothing from the session that wrote the pages; it was asked to check
every quoted string and every behavioural claim against the code rather
than to read the prose.

Every finding was an accuracy finding — the guide asserting something
the app does not do. All five were verified against the source before
being fixed.

| # | What was wrong |
| --- | --- |
| 1 🔴 | The new page's central how-to. "Type the number into the **Trac
ticket** panel" — the panel holds no input while a ticket is linked; the
field is in the unlinked branch only. The route is **Unlink**, then link
the new number. Unfollowable as written. |
| 2 🟡 | The mid-switch advice described a recovery that does not exist:
the marker is written only when a checkout throws inside a running app,
so a force-quit leaves nothing behind, and `midSwitchBlock` refuses the
retry along with everything else. The one action it allows is
**Unlink**, which is now what the page and `troubleshooting.md` say. |
| 3 🟡 | `applying-patches.md`'s "use **Update to latest trunk** to reset
the checkout" escape hatch. On a ticket the update parks, resets trunk
and checks the branch back out — applied patch included — so it leaves
you where you started. |
| 4 🟡 | "Nothing is rebuilt" was true and misleading: a switch does not
rebuild, so a running dev server keeps serving the previous ticket's
assets. The page now says to run `npm run build` after a switch, which
is what the site view itself says. |
| 5 🔵 | "If the note says two changes, the patch has two files." The
note counts everything the patch speaks about, binaries included, and
those are named above the diff rather than carried — so one text file
and one image is two in the note and one in the diff. It also
contradicted this PR's own `submitting-changes.md`. |
| 6 🔵 | The by-hand replay recipe skipped the trunk update that gives
the new branch a newer base, and offered **Delete this ticket's work**
for the ticket you are on, which the card never lists. |

**`[follow-up]`, both taken here rather than deferred** because they
were two sentences each: `managing-sites.md` and `trunk-updates.md`
described the same dirty-tree dialog differently, and
`troubleshooting.md` had no entry for the refused-switch message.

Style notes, also applied: the tickets card is additionally gated on the
setup checklist being finished or skipped, and the loose-edits question
can be raised from the **Attach to Trac** card's link field too.

The pass also confirmed what was most likely to be wrong and was not:
every other quoted label and message is verbatim, all six screenshots
match their alt text, `#deleting-a-ticket-s-work` resolves under
VitePress's slugifier, and the new page is in the sidebar.

</details>

<details>
<summary>Implementation notes</summary>

**How the screenshots were taken.** `git worktree add` from the stack
tip, then `git checkout <trunk> -- scripts/screenshots docs/…`,
`playwright-core` installed, and the `TOOLKIT_USER_DATA_DIR` hook from
`src/main.js` re-applied — the stack predates all of it, so `npm run
shots` does not exist on that branch. Two throwaway fixture variants
were added, both building real repositories through the app's own
`src/ticket-branches.js` (`startTicketBranch`, `parkCurrentWork`,
`switchToBranch`) so the state is the state the app makes: one site on
`ticket/29798` with parked work and a second branch, one parked back on
trunk with a loose edit. Same 1200×800 window and
`--force-device-scale-factor=1` as `capture.cjs`, so the new images sit
beside the existing ones without a size jump. The worktree has been
removed.

**The new slugs**, none of which `shots.cjs` knows about:
`ticket-list-card`, `ticket-list-unlinked`, `trunk-work-question`,
`carried-work-notice`, `linked-pull-requests`, `site-with-tickets`.

**`linked-pull-requests.png` is one image doing three jobs** — the
coloured state pills (#243), the unsubmitted-changes note (#241), and
the reorganised ticket card with the tickets list no longer inside it
(#242).

**`docs/` is its own npm package**, so `npm run docs:build` needs `npm
--prefix docs ci` first on a fresh checkout.

</details>

<details>
<summary>Screenshots or recording</summary>

Six new images, and one replaced.

**The tickets card, linked** — `ticket-list-card.png`:

![Other tickets on this
site](https://raw.githubusercontent.com/WordPress/contributor-toolkit/juanmaguitar/docs-ticket-branches/docs/public/screenshots/ticket-list-card.png)

**The tickets card, unlinked** — `ticket-list-unlinked.png`:

![Your tickets on this
site](https://raw.githubusercontent.com/WordPress/contributor-toolkit/juanmaguitar/docs-ticket-branches/docs/public/screenshots/ticket-list-unlinked.png)

**The question about loose trunk edits** — `trunk-work-question.png`:

![You have 1 uncommitted change on this site, not on any ticket yet.
What should happen to
them?](https://raw.githubusercontent.com/WordPress/contributor-toolkit/juanmaguitar/docs-ticket-branches/docs/public/screenshots/trunk-work-question.png)

**After choosing to carry them** — `carried-work-notice.png`:

![Your 1 uncommitted change came along into #62281, and will go into its
patch.](https://raw.githubusercontent.com/WordPress/contributor-toolkit/juanmaguitar/docs-ticket-branches/docs/public/screenshots/carried-work-notice.png)

**The ticket card with coloured pull request states and the
unsubmitted-work note** — `linked-pull-requests.png`:

![A red CLOSED pill and a green OPEN pill on the two linked pull
requests](https://raw.githubusercontent.com/WordPress/contributor-toolkit/juanmaguitar/docs-ticket-branches/docs/public/screenshots/linked-pull-requests.png)

**The three cards in their new order** — `site-with-tickets.png`:

![Trac ticket, then Other tickets on this site, then Apply a patch or
PR](https://raw.githubusercontent.com/WordPress/contributor-toolkit/juanmaguitar/docs-ticket-branches/docs/public/screenshots/site-with-tickets.png)

**Replaced:** `site-view.png`, whose action bar read **Submit changes**.
No stack behaviour is visible in it — it is a straight re-take of a
stale image.

</details>

---------

Co-authored-by: Claude Opus 5 (1M context) <noreply@anthropic.com>
Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment

Labels

None yet

Projects

None yet

Development

Successfully merging this pull request may close these issues.

Switching tickets is silent: no progress while the working tree is swapped

1 participant
