Merge remote-tracking branch 'origin/dev'

Author: Ананьев Александр

.gitignore

@@ -28,6 +28,8 @@ qrc_*.cpp
 ui_*.h
 *.qmlc
 *.jsc
+*.qch
+*.qhc
 Makefile*
 *build-*
 debug

README.md

@@ -1,9 +1,10 @@
 # Open ModSim
 Open ModSim is a free implimentation of modbus slave (server) utility for modbus-tcp and modbus-rtu protocols.

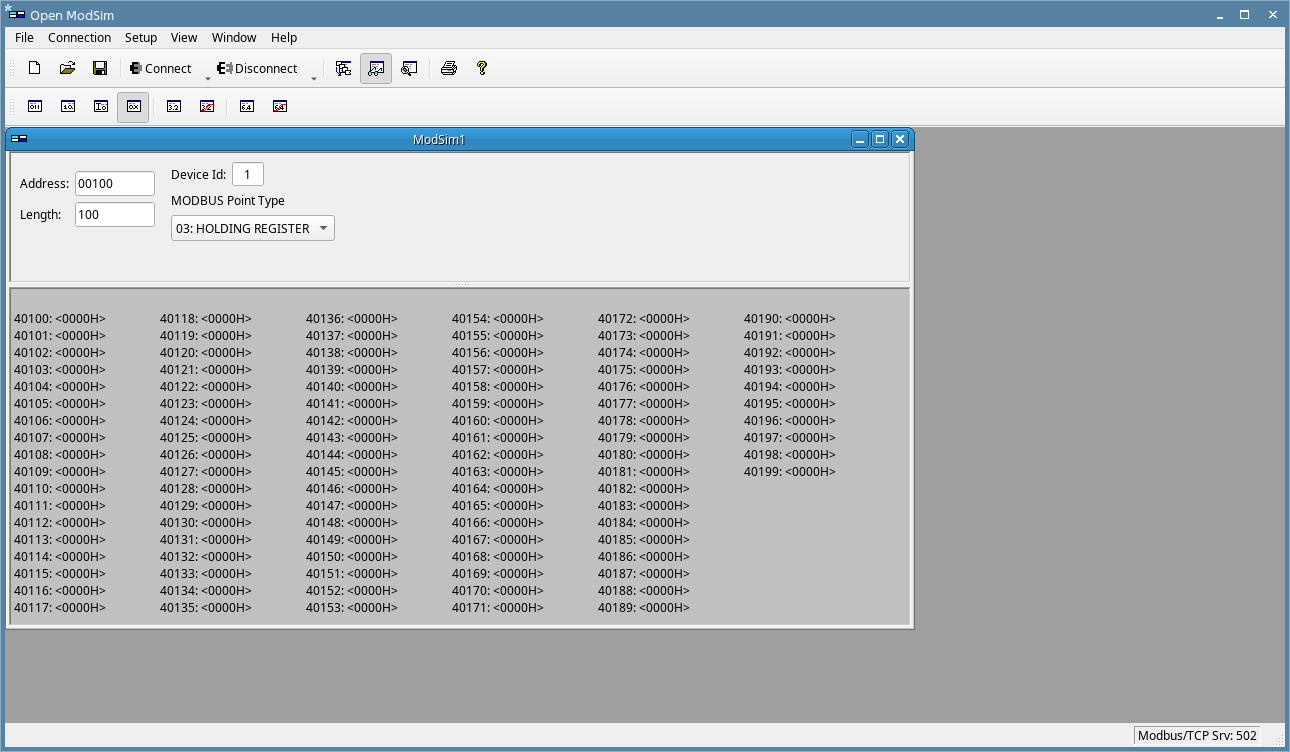

-![image](https://user-images.githubusercontent.com/13627951/217724115-6281e1dc-9f62-4b83-a945-156ee190b8c6.png)
+![image](https://user-images.githubusercontent.com/13627951/230102997-d6578945-bac0-4ca4-9210-da80e4f8783c.png)
+
+![image](https://user-images.githubusercontent.com/13627951/230103505-f446cf6d-a925-4a51-bbde-8bb77d3da5b1.png)

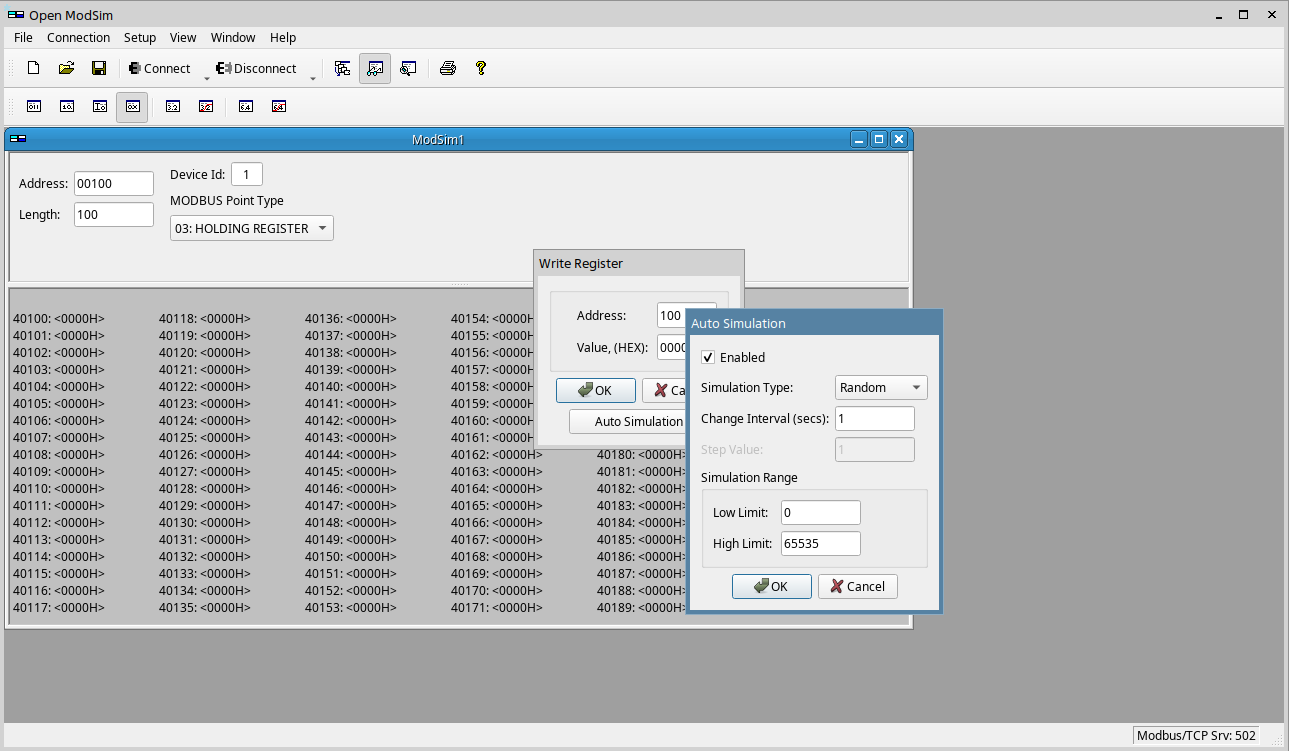

-![image](https://user-images.githubusercontent.com/13627951/217725531-81d2994c-d40c-474b-90bc-6f40695a6daa.png)


 ## Features
@@ -37,6 +38,55 @@ Registers
     Random - simulate register randomly
     Increment - simulate register from Low Limit to High Limit with a given Step
     Decrement - simulate register from High Limit to Low Limit with a given Step
+
+## Scripting
+  From version 1.2.0 Open ModSim supports scripting. Qt runtime implements the [ECMAScript Language Specification](http://www.ecma-international.org/publications/standards/Ecma-262.htm) standard, so Javascript is used to write code.
+
+  ![image](https://user-images.githubusercontent.com/13627951/230098131-55b4ef69-e01f-459f-a6d4-11f755978bcb.png)
+
+  Scripts can be launched in two modes: Once or Periodically. If you run script in Once mode the script will stop after it finishes executing. In Periodically mode, the script will start after a certain period of time until the user stops it or the method is called
+  ```javascript
+  Script.stop();
+  ```
+Here is an example of using the script in the Periodically mode
+```javascript
+/**************************************************************************/
+/*
+/* Example script that store value after 3 seconds
+/*
+***************************************************************************/
+
+function clear()
+{
+    /* Write to a Holding register at address 1 zero value */
+    Server.writeHolding(1, 0);
+}
+
+/* init function */
+function init()
+{
+    clear();
+
+    /* Runs when Hodling register value at address 1 was changed */
+    Server.onChange(Register.Holding, 1, (value)=>
+    {
+        if(value === 1)
+        {
+            /* Runs after 3 seconds and increase Holding register value at address 10
+             * Then stop script execution
+             */
+            Script.setTimeout(function()
+            {
+                Server.writeHolding(10, Server.readHolding(10) + 1);
+                Script.stop();
+            }, 3000);
+        }
+     });
+}
+
+/* Runs once when script started */
+Script.onInit(init);
+```

 ## Building
   Now building is available with Qt/qmake (version 5.15 and above) or Qt Creator. Supports both OS Microsoft Windows and Linux.

omodsim/controls/consoleoutput.cpp

@@ -0,0 +1,29 @@
+#include <QMenu>
+#include "consoleoutput.h"
+
+///
+/// \brief ConsoleOutput::ConsoleOutput
+/// \param parent
+///
+ConsoleOutput::ConsoleOutput(QWidget* parent)
+    : QPlainTextEdit(parent)
+{
+    setReadOnly(true);
+    setUndoRedoEnabled(false);
+}
+
+///
+/// \brief ConsoleOutput::contextMenuEvent
+/// \param event
+///
+void ConsoleOutput::contextMenuEvent(QContextMenuEvent* event)
+{
+    auto menu = new QMenu(this);
+    auto action = menu->addAction(tr("Clear"), this, [this]()
+    {
+        setPlainText(QString());
+    });
+    action->setEnabled(!toPlainText().isEmpty());
+    menu->exec(event->globalPos());
+    delete menu;
+}

omodsim/controls/consoleoutput.h

@@ -0,0 +1,19 @@
+#ifndef CONSOLEOUTPUT_H
+#define CONSOLEOUTPUT_H
+
+#include <QPlainTextEdit>
+
+///
+/// \brief The ConsoleOutput class
+///
+class ConsoleOutput : public QPlainTextEdit
+{
+    Q_OBJECT
+public:
+    explicit ConsoleOutput(QWidget* parent = nullptr);
+
+protected:
+    void contextMenuEvent(QContextMenuEvent* event);
+};
+
+#endif // CONSOLEOUTPUT_H

omodsim/controls/helpwidget.cpp

@@ -0,0 +1,70 @@
+#include <QEvent>
+#include <QHelpContentWidget>
+#include "helpwidget.h"
+
+///
+/// \brief HelpWidget::HelpWidget
+/// \param parent
+///
+HelpWidget::HelpWidget(QWidget *parent)
+    : QTextBrowser(parent)
+    ,_helpEngine(nullptr)
+{
+}
+
+///
+/// \brief HelpWidget::~HelpWidget
+///
+HelpWidget::~HelpWidget()
+{
+}
+
+///
+/// \brief SearchLineEdit::changeEvent
+/// \param event
+///
+void HelpWidget::changeEvent(QEvent* event)
+{
+    if (event->type() == QEvent::LanguageChange)
+    {
+        setSource(QUrl(tr("qthelp://omodsim/doc/index.html")));
+    }
+
+    QTextBrowser::changeEvent(event);
+}
+
+///
+/// \brief HelpWidget::loadResource
+/// \param type
+/// \param name
+/// \return
+///
+QVariant HelpWidget::loadResource (int type, const QUrl& name)
+{
+    if (name.scheme() == "qthelp" && _helpEngine)
+        return QVariant(_helpEngine->fileData(name));
+    else
+        return QTextBrowser::loadResource(type, name);
+}
+
+///
+/// \brief HelpWidget::setHelp
+/// \param helpFile
+///
+void HelpWidget::setHelp(const QString& helpFile)
+{
+    _helpEngine = QSharedPointer<QHelpEngine>(new QHelpEngine(helpFile, this));
+    _helpEngine->setupData();
+
+    setSource(QUrl(tr("qthelp://omodsim/doc/index.html")));
+}
+
+///
+/// \brief HelpWidget::showHelp
+/// \param helpKey
+///
+void HelpWidget::showHelp(const QString& helpKey)
+{
+    const auto url = QString(tr("qthelp://omodsim/doc/index.html#%1")).arg(helpKey.toLower());
+    setSource(QUrl(url));
+}

omodsim/controls/helpwidget.h

@@ -0,0 +1,30 @@
+#ifndef HELPWIDGET_H
+#define HELPWIDGET_H
+
+#include <QHelpEngine>
+#include <QTextBrowser>
+
+///
+/// \brief The HelpWidget class
+///
+class HelpWidget : public QTextBrowser
+{
+    Q_OBJECT
+
+public:
+    explicit HelpWidget(QWidget *parent = nullptr);
+    ~HelpWidget();
+
+    void setHelp(const QString& helpFile);
+    QVariant loadResource (int type, const QUrl& name) override;
+
+    void showHelp(const QString& helpKey);
+
+protected:
+    void changeEvent(QEvent* event) override;
+
+private:
+    QSharedPointer<QHelpEngine> _helpEngine;
+};
+
+#endif // HELPWIDGET_H
