title aws-lambda
keywords
Apache APISIX
Plugin
AWS Lambda
aws-lambda
description The aws-lambda Plugin integrates APISIX with AWS Lambda and Amazon API Gateway, supporting authentication via IAM access keys and API keys.

Description

The aws-lambda Plugin eases the integration of APISIX with AWS Lambda and Amazon API Gateway to proxy for other AWS services.

The Plugin supports authentication and authorization with AWS via IAM user credentials and API Gateway's API key.

Attributes

Name Type Required Default Valid values Description
function_uri string True AWS Lambda function URL or Amazon API Gateway endpoint that triggers the Lambda function.
authorization object False Credentials used in authentication and authorization on AWS to invoke Lambda function.
authorization.apikey string False API key for the REST API Gateway when API key is selected as the security mechanism.
authorization.iam object False IAM credentials to be authenticated using AWS Signature Version 4 and authorized.
authorization.iam.accesskey string False IAM user access key. Required when authorization.iam is configured.
authorization.iam.secretkey string False IAM user secret access key. Required when authorization.iam is configured.
authorization.iam.aws_region string False "us-east-1" AWS region where the request is being sent.
authorization.iam.service string False "execute-api" Service receiving the request. To integrate with AWS API Gateway, set to execute-api. To integrate with Lambda function directly, set to lambda.
timeout integer False 3000 [100,...] Proxy request timeout in milliseconds.
ssl_verify boolean False true If true, perform SSL verification.
keepalive boolean False true If true, keep the connection alive for reuse.
keepalive_pool integer False 5 [1,...] Maximum number of connections in the keepalive pool.
keepalive_timeout integer False 60000 [1000,...] Time for connection to remain idle without closing in milliseconds.

Examples

The examples below demonstrate how you can configure aws-lambda for different scenarios.

To follow along the examples, first log into your AWS console and create a Lambda function with any runtime. By default, the function should return Hello from Lambda! when called.

:::note

You can fetch the admin_key from config.yaml and save to an environment variable with the following command:

admin_key=$(yq '.deployment.admin.admin_key[0].key' conf/config.yaml | sed 's/"//g')

:::

Invoke Lambda Function Securely using IAM Access Keys

The following example demonstrates how you can integrate APISIX with the Lambda function and configure IAM access keys for authorization. The aws-lambda Plugin implements AWS Signature Version 4 for IAM access keys.

For IAM access keys, go to AWS Identity and Access Management (IAM) and click into the user you would like to use for integration.

Next, in the Security credentials tab, select Create access key:

create access keys

Select Application running outside AWS as the use case:

select use case

Continue the credential creation and note down the access key and secret access key:

save access keys

To create the Lambda function URL, go to the Configuration tab of the Lambda function and under Function URL, create a function URL:

create function URL

Finally, create a Route in APISIX with your function URL and IAM access keys:

curl "http://127.0.0.1:9180/apisix/admin/routes" -X PUT \
  -H "X-API-KEY: ${admin_key}" \
  -d '{
    "id": "aws-lambda-iam-route",
        "authorization": {
          "iam": {
            "accesskey": "<YOUR_ACCESS_KEY>",
            "secretkey": "<YOUR_SECRET_KEY>",
            "aws_region": "<YOUR_AWS_REGION>",
            "service": "lambda"
          }
        },
        "ssl_verify": false
      }
    }
  }'

Replace function_uri, accesskey, secretkey, and aws_region with your actual values. Set service to lambda when integrating with a Lambda function directly.

Send a request to the Route:

curl -i "http://127.0.0.1:9080/aws-lambda"

You should receive an HTTP/1.1 200 OK response with the following message:

"Hello from Lambda!"

Integrate with Amazon API Gateway Securely with API Key

The following example demonstrates how you can integrate APISIX with Amazon API Gateway and configure the gateway to trigger the execution of Lambda function.

To configure an API Gateway as a Lambda trigger, go to your Lambda function and select Add trigger:

add trigger for lambda function

Next, select API Gateway as the trigger and REST API as the API type, and finish adding the trigger:

select REST to be the API type and secure the API with API key

:::note

Amazon API Gateway supports two types of RESTful APIs: HTTP APIs and REST APIs. Only REST APIs offer API key and IAM as security measures.

:::

You should now be redirected back to the Lambda interface. To find the API key and gateway API endpoint, go to the Configuration tab of the Lambda function and under Triggers, you can find the details of the API Gateway:

API gateway endpoint and API key

Finally, create a Route in APISIX with your gateway endpoint and API key:

curl "http://127.0.0.1:9180/apisix/admin/routes" -X PUT \
  -H "X-API-KEY: ${admin_key}" \
  -d '{
    "id": "aws-lambda-apikey-route",
    "uri": "/aws-lambda",
    "plugins": {
      "aws-lambda": {
        "function_uri": "https://<YOUR_API_GATEWAY_ENDPOINT>/default/api7-docs",
        "authorization": {
          "apikey": "<YOUR_API_KEY>"
        },
        "ssl_verify": false
      }
    }
  }'

Send a request to the Route:

curl -i "http://127.0.0.1:9080/aws-lambda"

You should receive an HTTP/1.1 200 OK response with the following message:

"Hello from Lambda!"

If your API key is invalid, you should receive an HTTP/1.1 403 Forbidden response.

Forward Requests to Amazon API Gateway Sub-Paths

The following example demonstrates how you can forward requests to a sub-path of the Amazon API Gateway and configure the API to trigger the execution of Lambda function.

Please follow the previous example to set up an API Gateway first.

To create a sub-path, go to the Configuration tab of the Lambda function and under Triggers, click into the API Gateway:

click into the API gateway

Next, select Create resource to create a sub-path:

create resource

Enter the sub-path information and complete creation:

complete resource creation

Once redirected back to the main gateway console, you should see the newly created path. Select Create method to configure HTTP methods for the path and the associated action:

click on create method

Select the allowed HTTP method in the dropdown. For the purpose of demonstration, this example continues to use the same Lambda function as the triggered action when the path is requested:

create method and lambda function

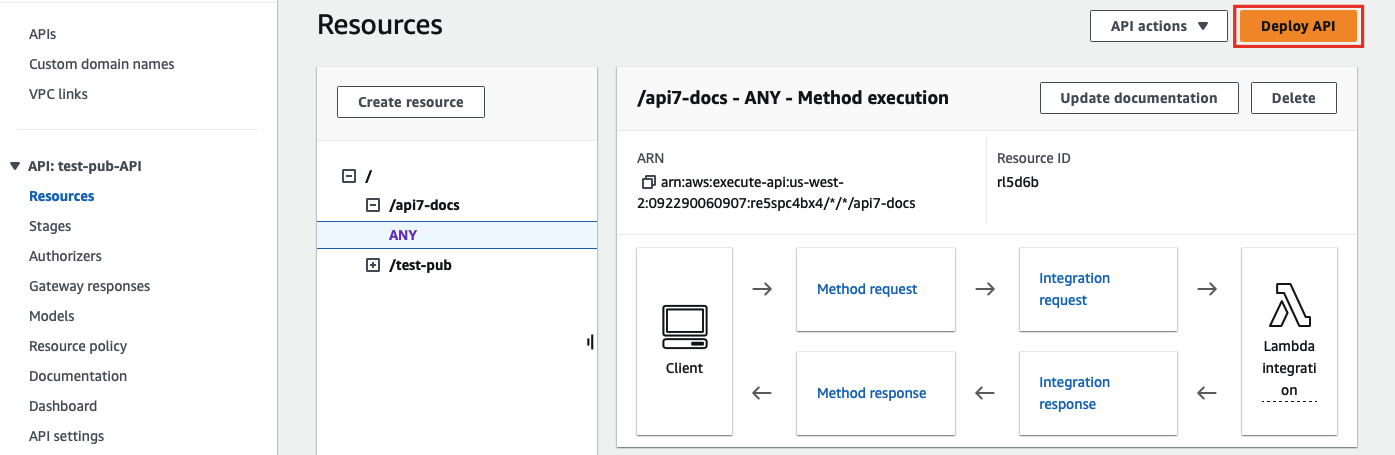

Finish the method creation. Once redirected back to the main gateway console, click on Deploy API to deploy the path and method changes:

deploy changes to API gateway

Finally, create a Route in APISIX with your gateway endpoint and API key. The uri must end with * so that any sub-path is matched to the same Route, and the matched sub-path will be appended to function_uri:

curl "http://127.0.0.1:9180/apisix/admin/routes" -X PUT \
  -H "X-API-KEY: ${admin_key}" \
  -d '{
    "id": "aws-lambda-subpath-route",
    "plugins": {
      "aws-lambda": {
        "function_uri": "https://<YOUR_API_GATEWAY_ENDPOINT>/default",
        "authorization": {
          "apikey": "<YOUR_API_KEY>"
        },
        "ssl_verify": false
      }
    }
  }'

Send a request to the Route:

curl -i "http://127.0.0.1:9080/aws-lambda/api7-docs"

APISIX will forward the request to https://<YOUR_API_GATEWAY_ENDPOINT>/default/api7-docs and you should receive an HTTP/1.1 200 OK response with the following message:

"Hello from Lambda!"

If your API key is invalid or if the requested path is not associated with any method, you should receive an HTTP/1.1 403 Forbidden response.
