DMX Model Utility Scripts

Powershell scripts to automate the processing of Source Engine DMX model files.
These scripts automatically remove or transfer flex controller and dominator rule datablocks in KeyValues2 DMX files.

An additional script utilizes the Dmxconvert command line tool, automatically detecting your Source 1 (or 2) branch and the format of your provided DMX files in order to provide options in a GUI interface that simply allow you to choose what format you wish to convert to without the need for manual specification of the tool's required parameters.

Dmxconvert script only supports Model formats and SFM Elements/Presets (.pre) !

Just drag and drop your files on to the script and select what you want Dmxconvert to do.

DMXConvert_Controllers.ps1

Provides an automated interface for using Dmxconvert without the need for command line parameters or batch files.
Currently only supports processing one file at a time.

  1. Drag a DMX file on to the batch, the tool will check your VGame path to locate Dmxconvert.exe
    *You can manually override the VGame environment variable at the top of the Powershell script
  2. The script will automatically detect the Source Engine branch and DMX file encoding to determine choices
    *The script will also detect if you gave it an improperly converted SFM Preset file, and offer to fix it for you
  3. Choose a new encoding format you want to convert to from a list of automatically filtered options
  4. Choose whether to output to a new file or overwrite the original file directly, the file will be renamed
  5. The script will run Dmxconvert.exe according to your input, and save the output

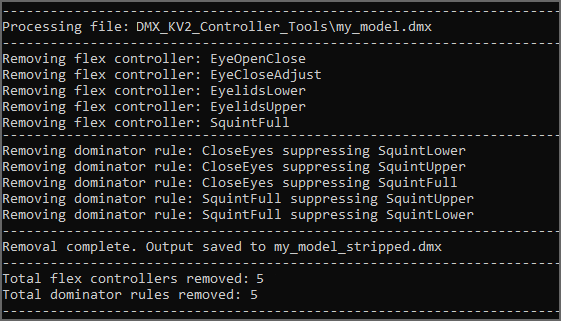

Remove_Controllers.ps1

Strips all flex controllers and flex dominator rules out of a KeyValues 2 DMX file.
The primary purpose of this script is to prepare a DMX file for controller injection from another source, via Transfer_Controllers.ps1

  1.  Drag a KeyValues2 DMX file onto the batch to remove its embedded controllers and dominators

  2.  The script will save the new version of the file with _stripped appended to the name

Transfer_Controllers.ps1

Transfers flex controller and dominator data from one data source to another
The source can be another KeyValues2 DMX file, or any raw text file (such as Blender generated controller files)

  1.  Drag a stripped DMX file, controller source, or both on the batch file to begin
    *If only one file was provided, identify the other file for the script to use

  2. The script will automatically decide which is the transfer source and which is the stripped file

  3. Choose one of the four available options to determine file output behaviour

  4. The script will then transfer the controllers from the source file to the stripped file, and save the output
